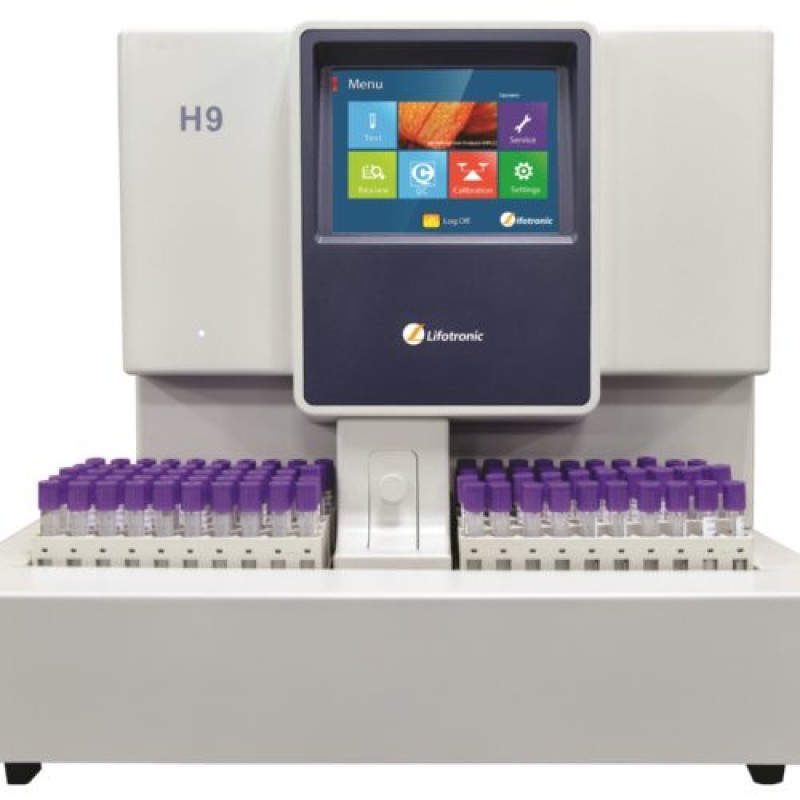

H9 HBA1C ANALYZER (HPLC)

• Gold Standard Of Diabetes Diagnose
• HPLC Methodology
• H9 Hemoglobin Analyzer(HPLC)
• HPLC Technology(Gold Standard Methodology)
• fast- To Ensure Your Workload is Processed Promptly
• Fully Automated – To Minimize Operation Hassles
• Precise and Reliable – To Serve You Consitently
• User Friendly- To Avoid Operator Error
• Flexible- To Satisfy Diverse Laboratory’s Needs
• Complex System Functions- For Easy integration
• Compact Size- To Minimize Space Requirements

Specification

• METHODOLOGY :- High-Pressure Liquid Chromatography (HPLC)
• TEST MODES :- Fast Mode, Variant Mode, thalassemia Mode
• TEST RANGE :- 3% — 18%
• PRECISION :- CV < 1 %
• FIRST SAMPLE RESULT :- 2.4 Mins
• TEST SPEED :- 1 .2Mins/ sample
• SAMPLE TYPE :- Venous Blood, Finger Peripheral Blood, Lyophilized Whole Blood
• SAMPLE VOLUME :- 5ul , Peripheral Blood, 3ul (1000 Dilution Rate)
• AUTO SAMPLE STATION :- 110 Positions+1 Stat Position
• PHOTOMETER :- 415nm+500nm LED, 20000 Hours Life Span
• CHROMATOGRAPHY COLUMN :- Available Tests 2 1500T
• FILTER :- > 400T
• DISPLAY :- 8″TFT True Color LCD Touch Screen
• SOFTWARE :- Embedded System with Self-Diagnosis to Monitor and Detect System Errors
• REAGENT KIT :- Eluent A, Eluent B, Eluent C, Hemolysin, Calibrator,QC Material
• IMFORMATION INPUT :- Scanner or Touch Keypad
• STORAGE :- 4000 Sample Results
• CONNECTION :- Rs232, USB, LIS Compatible
• PRINTER :- Thermal Printer and External Laser Printer
• OPERATION TEMPERATURE :- 12~35°C (53~95°F)
• HUMIDITY :- 10~ 70%
• POWER :- AC 100-240V 50/ 60HZ 150VA
• DIMENSIONS :- 580mm x 500mm x 520mm (22.8”H >< 19.7”W x 20.5″D)
• WEIGHT :- 50kg (110lbs)
• BARCODE SCANNER :- Intemal Automated Scan
• NGSP AND IFCC CERTIFIED
