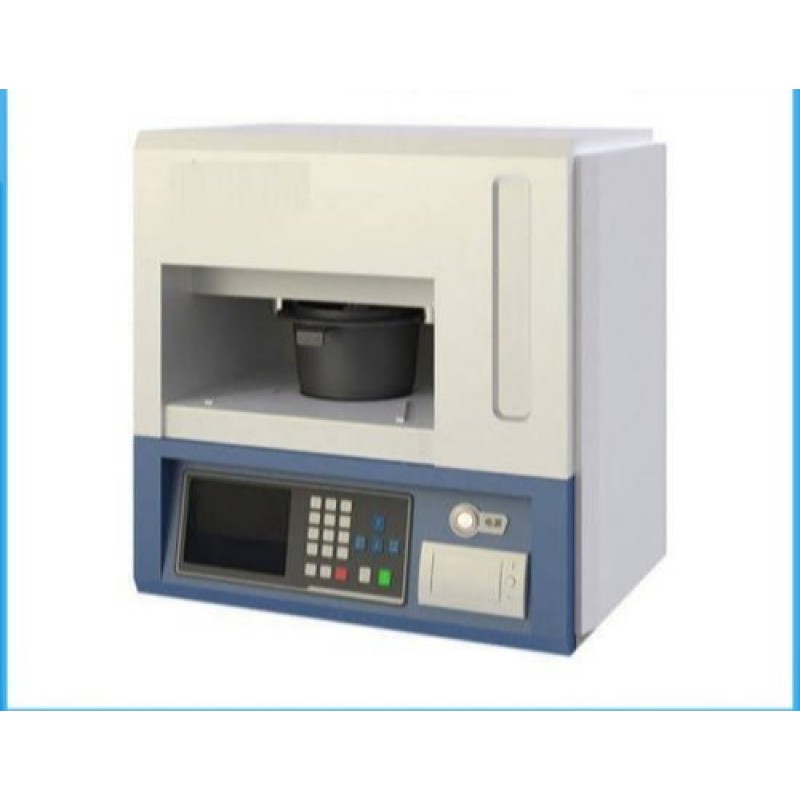

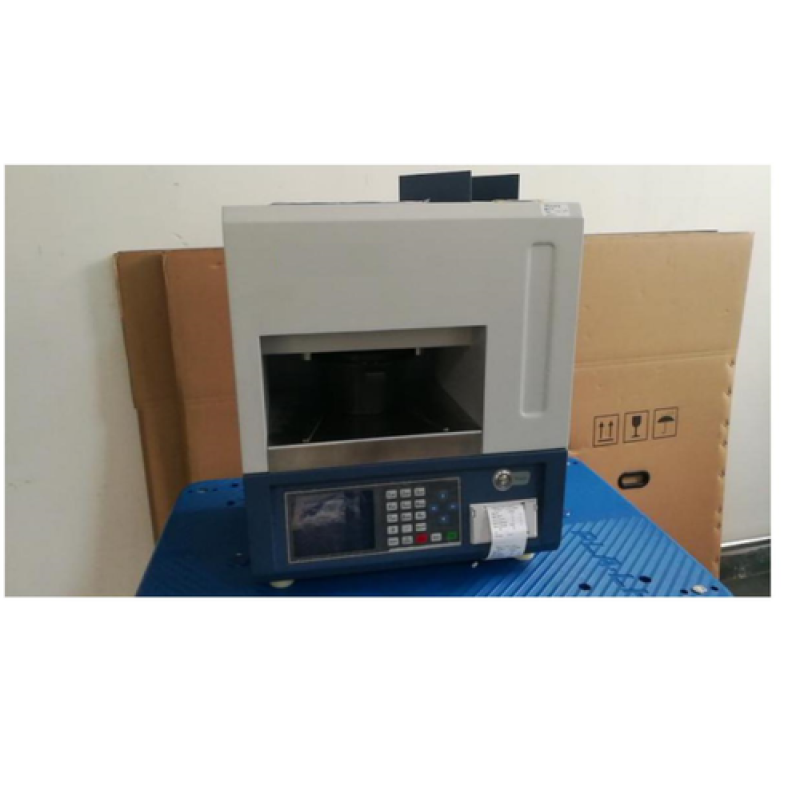

Hardgrove Grindability Index (HGI) Tester/Analyzer
Product Details:
Minimum Order Quantity | 1 Piece |
Material | Stainless Steel |
Model Name/Number | AI-SDHG60 |
Usage/Application | Laboratory |
Type Of Testing Machines | coal, bio coal pallets coke samples |
Packaging Type | Wooden Box |
Display Type | Digital |
Features :
Standards: ISO 5074:1994 Hard Coal-Determination of Hardgrove Grindability Index
ASTM D409-08 Standard Test Method for Grindability of coal by the Hardgrove-Machine Method
- Spindle Speed RPM: 20±1 r/min.
- Working Revolution: 60
- Ball Diameter: 25.4±0.13 mm
- Grinding Bowl Capacity: 50g
- Operation On: 220/230V, 50/60Hz
- Load Bearing Capacity: 284±2N
- Feed Size: 0.63-1.25mm
- Grinding balls MOC: Chrome Steel
The HGI equipment should have such a facility which grind the coal, cokes, bio coal pallets coke samples
