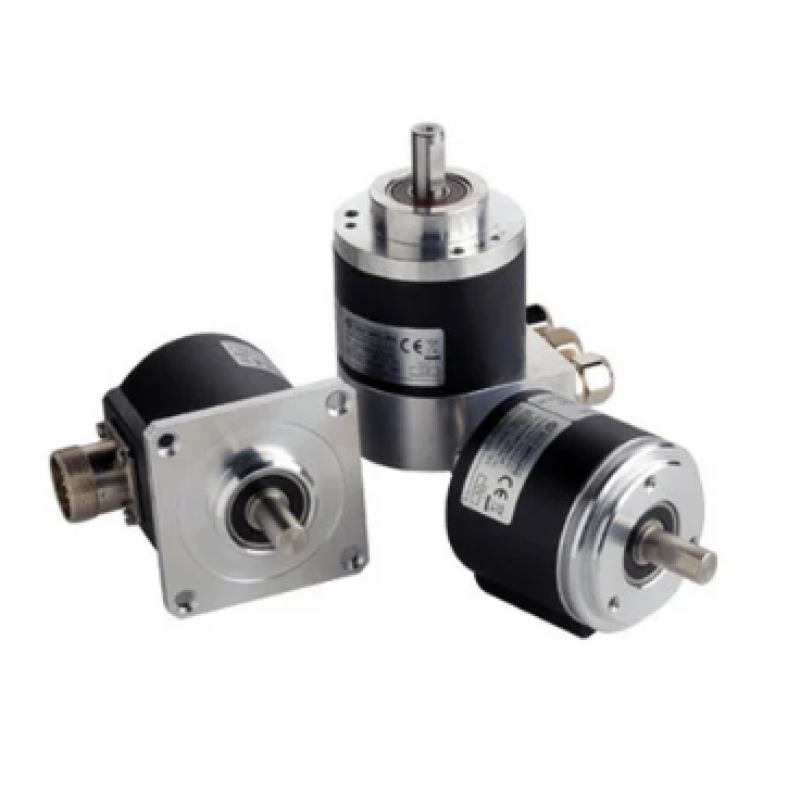

Absolute Encoder
Product Details:
We are into offering a wide array of Absolute Encoder. To support the complete concept GIVI MISURE Pvt Servo Ltd is offering Absolute Encoder at market leading prices.
Specifications:
Compact-design absolute rotary encoder, based on optical principle.
Singleturn resolution up to 17 Bit.
Multiturn resolution up to 12 Bit.
High accuracy and stability of signals.
Linearity ± ½ LSB (± 1 LSB for resolutions > 13 Bit).
Serial interface (SSI-BiSS, with or without 1 Vpp analog signal), Fieldbus (CANopen, Profibus, DeviceNet) or Parallel.
Several flanges available.
IP 67 protection class available.
Aluminium flange and body.
Axial or radial output (with connector or cable).
High rotational speed (up to 12,000 rpm).
Diagnostics: warning, LED indication, temperature measurement, alarm bit.
