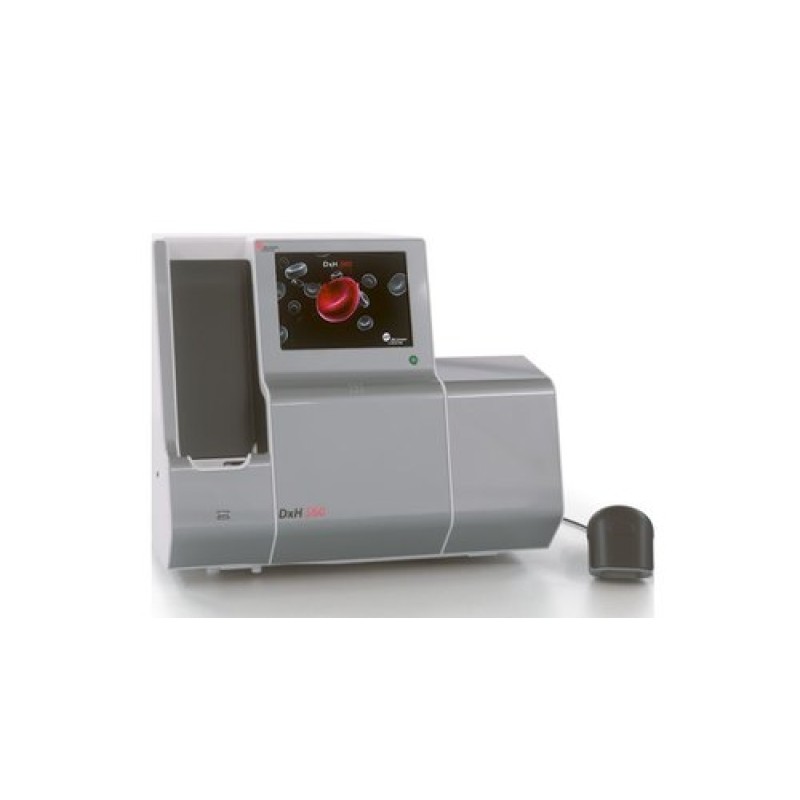

DxH 560 Five Part Differential Hematology Analyzer
Product Details :
Automation | Fully Automatic |
Usage/Application | Hospital |
Brand | Beckman Coulter |
Differential Type | 5-Part |
Number Of Chambers | 2 |
Model Name/Number | DxH-560 |
Throughput | 55 closed-tube samples per hour, 60 open-tube samples per hour |
Sample Volume | 17 microlitre of venous or micro-collected whole blood |
Frequency | 60 Hz |
Chamber Type | Dual Chamber |
Weight | 22.0 kg (48.5 lbs.) |
Data Storage | 30,000 patient results, including graphics, flags, codes and messages |
Printer | Optional USB printer; laser or ink jet |
Altitude | Up to 3,000 meters (9,843 feet) |
Humidity | 80% relative humidity (non-condensing) at 32 DegreeC (89.6 DegreeF) |
User Interface | Integrated 8.4 inch high resolution color touch screen; Handheld barcode |
Mode of Operation | Autoloader, 50 tube continuous feed capacity, open-tube mode |
QC Package | 12 control files, each with a maximum of 150 runs, LJ plots, XB, XM and eIQAP with QC auto rerun |
Voltage | 240 VAC |
Phase | Single Phase |
Carryover | <1.00% for WBC, RBC, HGB, PLT and 5-part differential |
Ambient Temp/Altitude | 18-32 DegreeC (64.4-89.6 DegreeF) / Up to 3,000 meters (9,842 feet) |
External Storage | Supports USB 2.0 (five ports) |
Languages | Czech, English, French, German, Iberian Portuguese, Italian, Japanese, Romanian, Spanish, Russian |
- Save time and resources: with a multi-tube, compact hematology analyzer that has proven reliability, paperless data management and autonomous instrument daily cleaning
- Available when you need it: the DxH 560 is engineered for high uptime and system reliability at less than one service call per year
- Eliminate system readiness delays: experience hands-free, autonomous daily cleaning and startup. The DxH 560 was designed with reliability in mind and allows for high walkaway time with autonomous daily start-up and system checks, hands-free daily cleaning, plus simple and few reagent replacements for maximized uptime
- Load and go up to 50 samples: with on-the-fly continuous loading more than twice the capacity compared to the closest competitor
- Extended QC (eQC): with onboard bias, precision and accuracy monitoring without the need for internet or extra fees
- Reduce administrative errors and go paperless:: designed to work as hard as you do, the onboard data management in the DxH 560 can host up to 30,000 patient records—equivalent to a year’s worth of tests with typical usage
- Keep analysis running smoothly throughout the day: store and manage just three reagents, with simple and quick replacement, compared to six reagents with other analyzers in its class
- Test in tight spaces: with an integrated monitor and keyboard and only one external reagent, the DxH 560 requires up to 1/3 less laboratory counter space than other analyzers in its class
