Metallic Coating Thickness
product Details :
Analysis Type | Physical/Chemical Properties |
Standard Certificates Required | Yes |
Usage/Application | Mechanical Engineering |
Value Data Report On | Material Properties |
Sector Type | Aerospace, Power Generation, GAS, Paint and many more |
Coating Test | coating thickness measurements of paint, lacquer, galvanic, powder bitumen and other coatings on su |
Periodic Assessment Service | Yes |
PRODUCT DESCRIPTION
Purpose

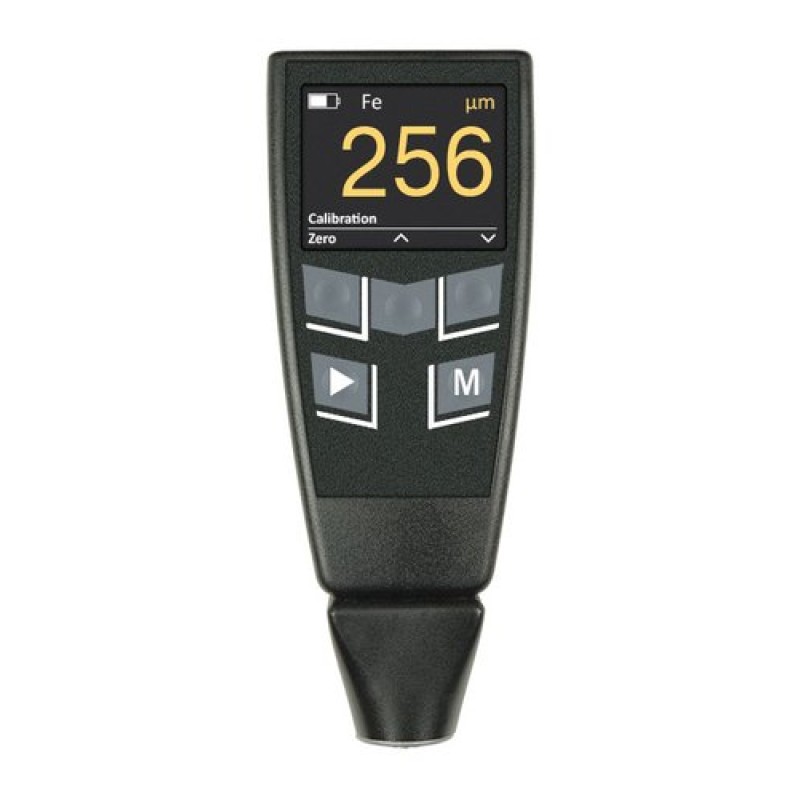

Small-sized device for operative coating thickness measurements of paint, lacquer, galvanic, powder bitumen and other coatings on substrates from ferrous and non-ferrous materials with increased temperature range.
Features
- colour OLED display with 1.7’’ diagonal, large digits on display;
- device can be delivered with integrated combined small-sized probe for measuring coating thickness on substrates from ferrous and non-ferrous materials;
- increased temperature range up to -30°C;
- possibility of tolerance mode measurement, measuring with averaging;
- device can be delivered with integrated probe or with built-in probe on cable.
Basic technical characteristics
- accuracy: in range T = 0…500 µm ±(0,02T+1) µm; in range T = 500…Tmax ±0,02T µm;
- temperature range: for device: -30 °C…+40 °C; for probe: -40 °C…+ 50 °C;
- power-supply: built-in Li-Ion rechargeable battery, 3,7 – 4,2 V, 700 mAh;
- overall dimensions: 120 × 45 × 20 mm;
- weight: 130 g;
- operating time: min 8 h.
Delivery set
- The device can be completed with measuring probe, set of coating reference specimens (calibration foils), sample of metal substrate, charging unit, operating manual, container for storage and transportation (case or bag)
