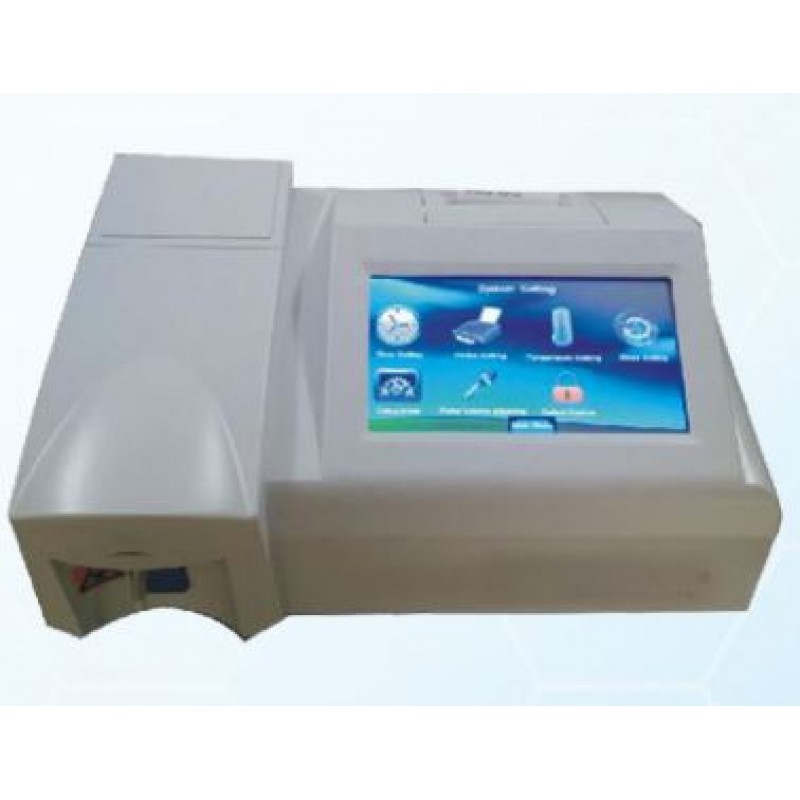

Semi Auto Chemistry Analyzer
Product Details :
Dimension | 340(l)x270(w)X160(H) |
Weight | 5kgs |
Flow Cell | 32 l Quartz glass 10nm |
Sample Volume | 0-300- 500 recommended |
Test Mode | Kinetic, End Point, Absorbance, fixed time, multi standard up to 10 standards |
Wave Length | Standard Filters, 340, 405, 505, 560, 630nm, 3 free positions |
Wave Length Precision | +2nm, width Greter Than 10nm |
Absorbance Range | 0 - 4.500 Abs |
Abosrbance Precision | Outside 0.0001Abs, inside 0.00001 Abs |
Carryover | 1 Percentage |
Repeatability CV | 1 Percentage |
Incubator | 37 C, 30 C, 25 C and others, precision+01 C |
Data Storage | 10000 test reports |
Quality Control Curve | xSD CV% L-J Quality Control curve for every test item |
Lamp | Phillips 6v, 10w halogen lamp with long life |
Screen | 7 color LCD Screen |
CPU | ARM series high speed micro CPU |
Printer | Internal thermal sensitive printer |
Interface | RS 232 port for computer connectivity |
Work Environment | Temperature 0 Degree C to 45 Degree C, humidity 80% |
Power Supply | 100-240V, AC 50-80Kz, 100VA |
- 5 Filters 3 Free position
- Window based software comprehensive print report
- 99 user define program
- 7” large touch screen operations
- Flow cell and cuvette mode
- External power supply through DC adaptor
- Online QC Graph
- User friendly software
- Input Volt-12v less power and protect main board
- Real time graph for endpoint, Kinetic, fixed time chemistries
- User friendly software-just one hour training
- Computer Connectivity software (optional)
