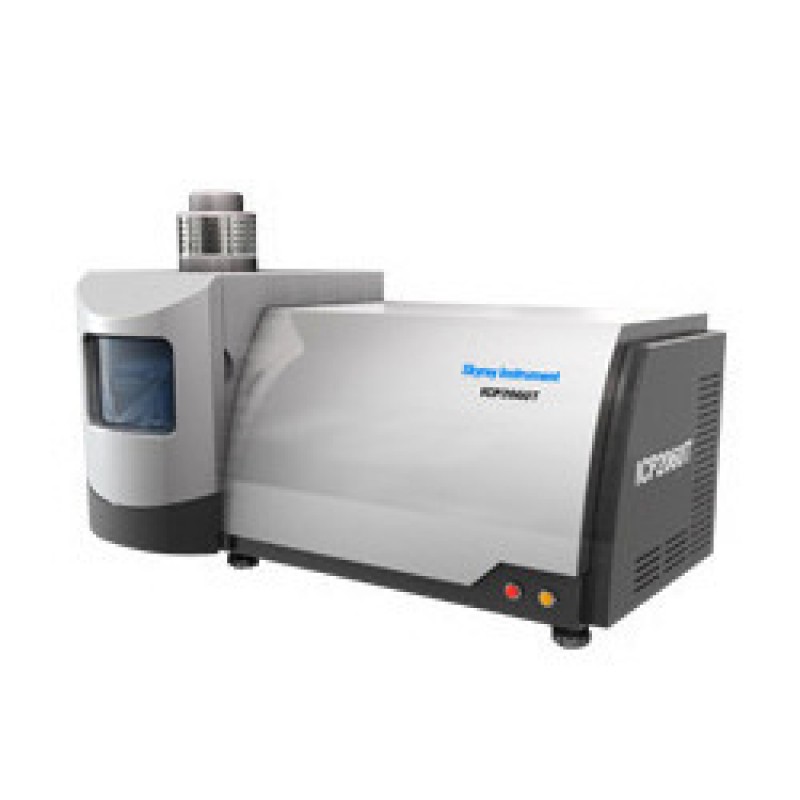

Inductively Coupled Plasma Spectrometry

We have been indulged in providing Inductively Coupled Plasma Spectrometry to meet rising demands of the clients. Offered products are available at competitive market price.

Product Details :

• Easy installation
• Sturdy construction
• Reliable performance
• Industry approved design
• Robust structure
• Economical maintenance

Technical Specification :

• Size: 1.5m×0.8m×0.8m
• Solid State Power
• Frequency: 27.12MHz
• Frequency stability : < 0.05
• Couple method : Auto match
• Output power: 800W ,1600W, continuously adjustable with power efficiency more than 65%
• Output power stability : ≤ 0.05
• Induction coil ID 25mm×3, equipped with three concentric quartz torch tubes of ED 35mm (ID : internal diameter; ED : external diameter)
• Spray chamber : Scott double pass spray chamber
• Monochromator
• Optical type : Czery turner
• Focal length : 1000mm
• Grating specification : huge holographic grating with 3600L/mil or 2400 L/mil and 80 mm×100mm of ruling area
• Resolution : ≤0.015nm (3600 line grating), ≤0.030nm (2400 line grating)
• Wavelength range : 195~500 nm for 3600 line grating, 195~800 nm for 2400 line grating.
• Electronic Measurement & Control Circuit
• Photomultiplier tube specification R212/R928
• Negative high voltage : (-50 ~ -1000) V
• Circuit measuring range : (10-12 ~ 10-4) A
• Signal acquisition : VF conversion

Additional Information :

• Item Code: 2060-T
