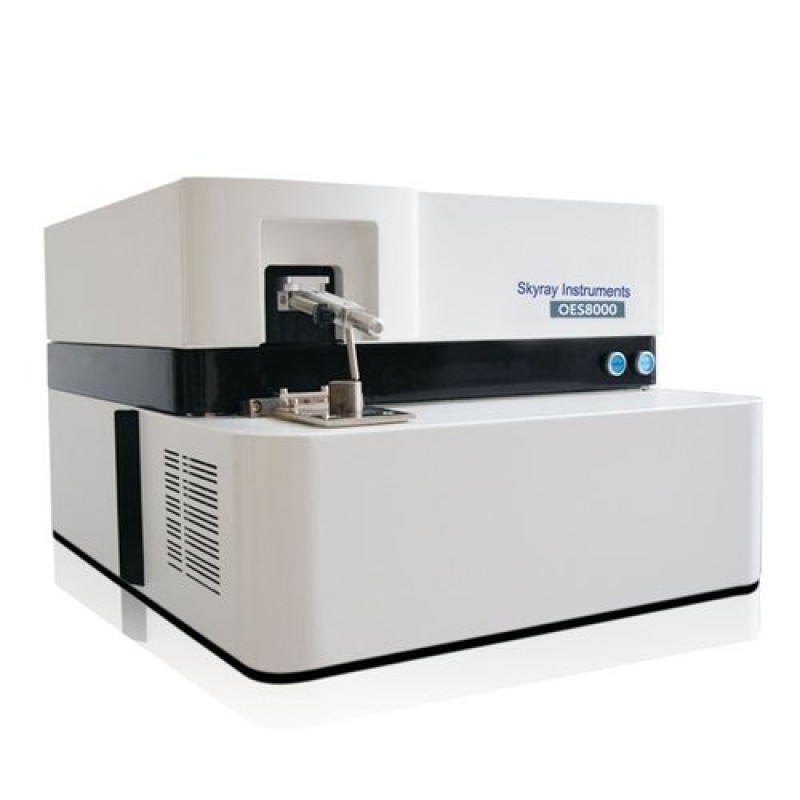

Optical Emission Spectrometer
Product Details :
Based on the Multi-CCD detector and total spectrum technology, OES 8000 Optical Emission Spectrometer is able to detect all the spectral lines within the wavelength range. OES 8000 Optical Emission Spectrometer features a new design which eliminates the need of a vacuum pump and vacuum sealed chamber for accurate analysis. With extended wavelengh range the instrument is suitable for the complex analysis of ferrous and non-ferrous metals.
Features
- High end Components- CARL ZEISS Grating and Optical lens, Toshiba CCD Detector & Agilent Optical Fiber
- Polychromator operates without need of vacuum pump
- High Resolution: 10 pm/pixel
- Fast analysis: 35 seconds testing
- Excellent reliability and repeatability- 24/7 operation
- Compact Size
- Application Fields
- Metallurgy, steel, ferrous & non-ferrous metals
- R&D, process control, inspection and sorting.
- Metal smelting, metal casting and processing industry
| Technical Specifications | |
|---|---|
| Polychromator | Paschen-Runge Polychromator-350mm focal length |
| Chamber: | Special casting materials reduce the deformation of the chamber |
| Grating: | Holographic concave grating- 3600 l/mm |
| Wavelength range: | 140-600 nm. |
| Detector: | High-performance linear array CCD |
| Analysis time: | less than 30 seconds for most tests |
| Spark Source | Digital plasma generator with high energy pre-spark (HEPS) |
| Spark Frequency | 100-1000Hz |
| Spark Current | 1-60A |
| Size/weight: | 45cm x 75cm x 80cm, weight: 85kg |
