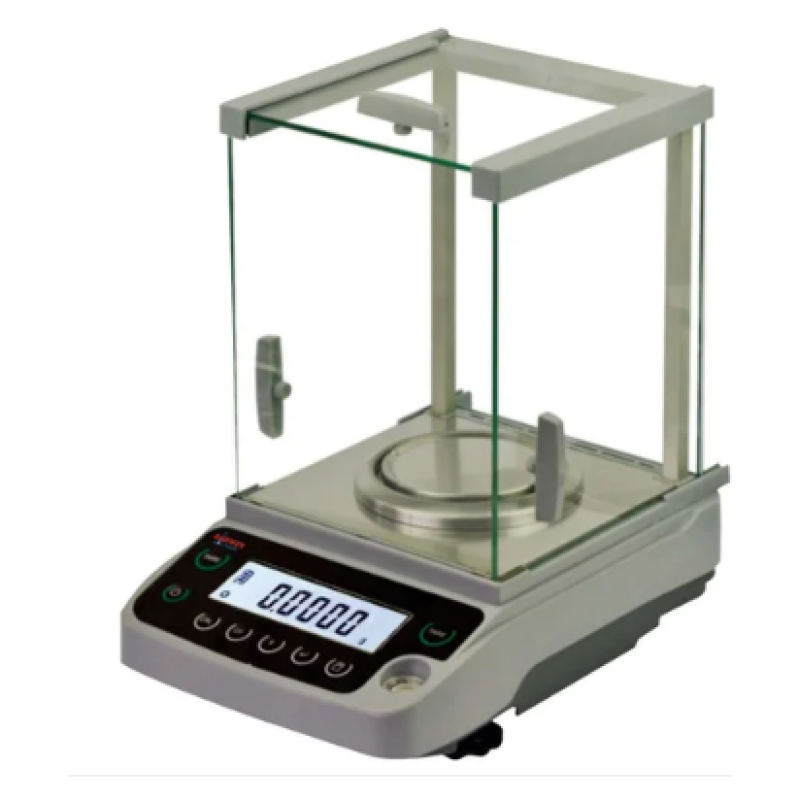

Digital Electronic Balance
Product Details:
Standard Features
- Automatic EXTERNAL Calibration with built in weight
- A built in under hook for below weighing system (Optional)
- Easy to read LCD Display with back light
- Density Measurement for solid and liquid (Optional)
- Standard RS 232 Interface
- Based on E.M.F.C. Technology
- S.S. Weighing Pan, Level Indicator, Adjustable Fit
- Full Tare Range upto Max. Capacity of the Balance
Technical Data
Technical data: | DWA-214 | DWA-224 | DWA-314 | ||
Max capacity | 110 g | 220 g | 310 g | ||
Readability | 0.1 mg | 0.1 mg | 0.1 mg | ||
Tare range | Full | Full | Full | ||
Repeatability | 0.1 mg | 0.1 mg | 0.1 mg | ||
Linearity | ±0.2 mg | ±0.2 mg | ±0.3 mg | ||
Pan size | ø 85 mm | ||||
Stabilization time | 3,5 s | ||||
Working temperature | +10° - +40°C | ||||
Power supply | 110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC / 1,1 A | ||||
Calibration | External Calibration | ||||
Display | LCD with backlight | ||||
Net weight/Gross weight | 5,5/8,2 kg | 5,6/8,3 kg | 5,6/8,3 kg |
