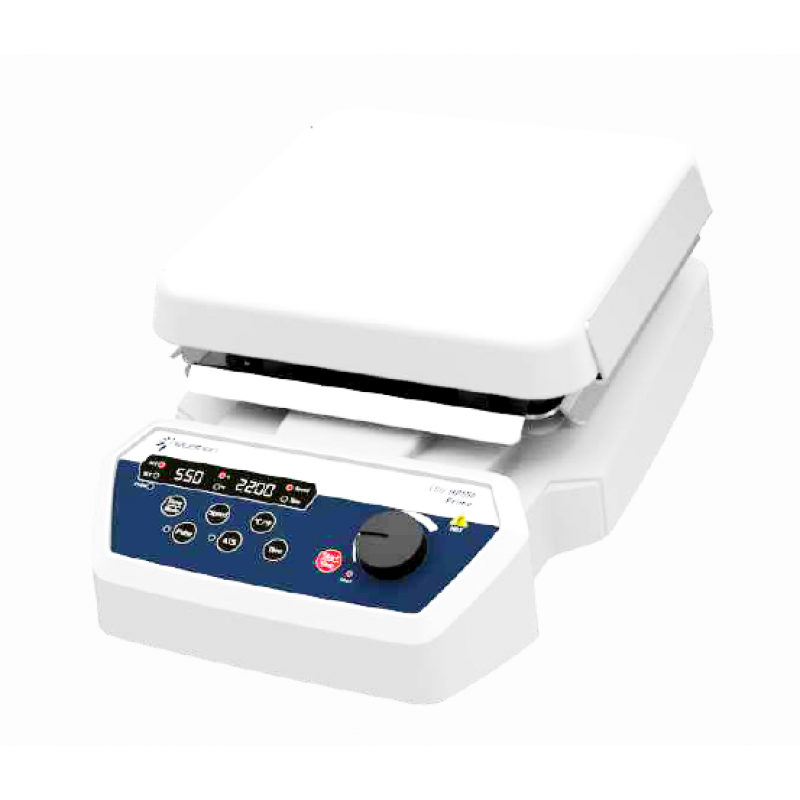

HOT PLATE MAGNETIC STIRRER

Product Features

• Powerful servo DC motor for constant speed delivery under varying load

• Stirring capacity up to 20 litres
• Nano crystal full ceramic top plate ensures chemical resistivity & constant heat transfer
• Highly resistant and inert body, even to strong chemicals
• Heater temperature setting from Ambient to 550°C
• Variable speed setting from 200 to 2200 RPM in steps of 10 RPM &
long timer range from 1-999 mins & infinite mode
• Microprocessor controlled hot plate stirrer with variable speed and
time setting, along with last run memory function
• Auto restart mode automatically resumes stirrer operation in case of power interruption
• Keypad lock function locks down keypad after the user has set theparameters
• Programmable pulse mode with run pause run feature
• 5 heating modes for rapid, gradual & accurate heating
• Large and clear display for better readability across all parameters, set values readily visible
• Safe temperature circuit cut up to 575°C for greater reliability
• Small footprint for saving valuable bench space
• LED indication when plate temperature above 50° C
• Compatible with PT-1000 temperature probe to accurately measure temperature of medium
• Keypad lock feature & Auto restart feature

Specifications	AI-HP550P
Rotor Capacity (Max)	20 Litres
Set-up plate material	Nano crystal full ceramic top plate
Variable Speed	200-2200 RPM
Heat Temperature Range	Ambient to 550° C
Temp Accuracy	± 1°C
Run Time	1-999 mins & infinite
Digital display	Shows Speed/Time and Actual/Set temperature alternately
Safe temperature circuit	Yes
Set-up plate dimensions	180 x 180 mm
Weight	4.9 kgs
Dimensions (L x W x H)	330 x 225 x 113 mm
Length of stir bar	25 mm
Protection class	IP 21
