LIASYS CINICAL CHEMISTRY RANDOM

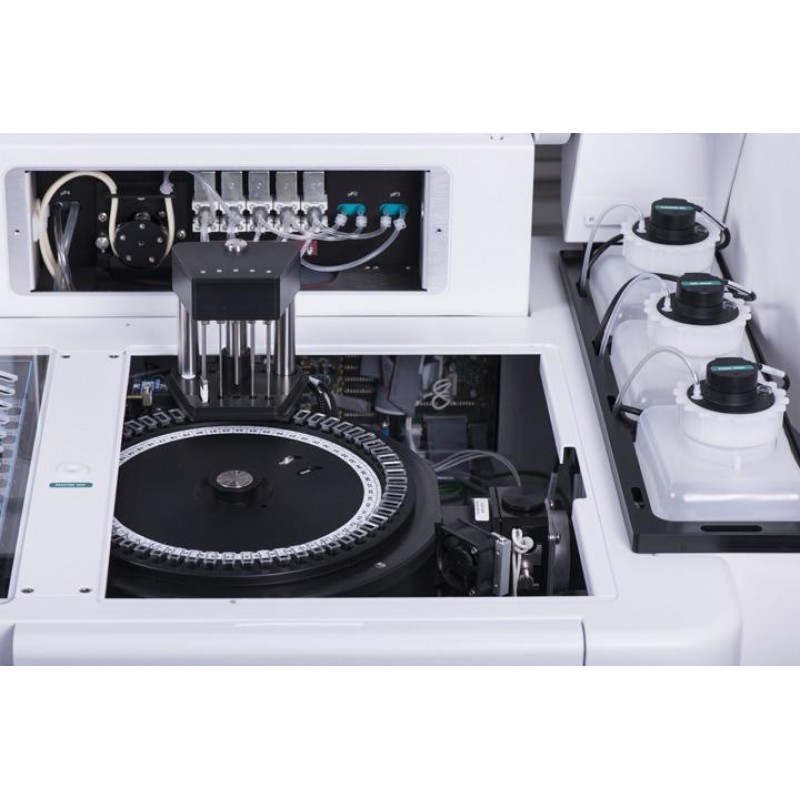

Fully automatic, random access, continuous loading, benchtop analyzer for clinical chemistry and immunoturbidimetric assays.

ASSAY TYPES

End Point, Kinetic, Differential, Bichromatic, Fixed Time, Non-Linear. All methods are user programmable (up to 999 tests).

ON LINE REAGENTS

4 racks are provided to hold up to 33 reagents that are

Divided as follows:

  • 2 racks cooled by Peltier cells holding up to 20 reagents
  • 2 racks for 13 reagent positions and 14 standards and controls at room temperature
  • 2 additional positions for diluents


DESCRIPTION

Fully automatic, random access, continuous loading, benchtop analyzer for clinical chemistry and immunoturbidimetric assays.


ASSAY TYPES

End Point, Kinetic, Differential, Bichromatic, Fixed Time, Non-Linear. All methods are user programmable (up to 999 tests).


ON LINE REAGENTS

  • 4 racks are provided to hold up to 33 reagents that are divided as follows:
  • 2 racks cooled by Peltier cells holding up to 20 reagents
  • 2 racks for 13 reagent positions and 14 standards and controls at room temperature
  • 2 additional positions for diluents


SAMPLES LOADING

  • 5 racks for continuous loading of samples split in:
  • 64 positions for routine samples
  • 14 positions for STAT samples


PRIMARY TUBE SIZES

  • From 40 mm to 100 mm (height)
  • From 10 mm to 16 mm (diameter)


STAT SAMPLE PROCESSING

Allowed at any time.


THROUGHPUT

Up to 333 tests/hour with ISE (200 without ISE).


INCUBATION TEMPERATURE

37 °C.


READING SYSTEM

Direct photometry.


MINIMUM REACTION VOLUME

300 μl.


OPTIC SYSTEM

  • Photometer: multi-wavelength, dual channel optic
  • Wavelengths: up to 9 narrow band interferential filters 340, 380, 405, 492, 510, 546, 578, 620 (690 opt.)
  • Light Source: halogen lamp 6V/10W
  • Optical Path: 10 mm
  • Linear Range: 0.001 ÷ 2.500 Abs
  • Resolution: 0.0001 Abs


SAMPLING ARM

  • One mechanical arm performs all sampling operations with:
  • Capacitive liquid level sensing
  • Reagent pre-warming at 37 °C
  • Automatic probe washing


DILUTER

  • Dilutions are made without using traditional syringes with the following specifications:
  • Sample volume: 2.0 μl ÷ 99 μl (1 μl incr.)
  • Reagent volume: 3.0 μl ÷ 500 μl (1 μl incr.)


REACTION PLATE

  • Holds 60 semi-disposable cuvettes and perfoms the following operations:
  • Automatic cuvettes washing
  • Continuous monitoring of cuvettes quality
  • Incubation temperature: control at 37 °C ± 0.3


OPTIONS

  • Direct potentiometry ISE module for NA+, K+, Cl-
  • Positive barcode reader (samples)
