BNC HB1 Data Transfer Checker

Model Name/Number	BNC-HB1
Weight	Approx. 60g
Direction	Side-on
Transmission Distance	300 MM
Case Material	Polycarbonate
Battery Life	4 hours(When continuous use)
Charging Time	Approx. 16 hours
Current Consumption	100mA or less
Power Source	Built-in rechargeable battery(Charging from AC Adaptor)

Other Details:
BNC-HB1

Data transfer checker can check the interlocking on SEMI E84 beforehand ! Data transfer checker provides the following 2 kinds of application software (Hokuyo Data Flex SFOC and RIS).

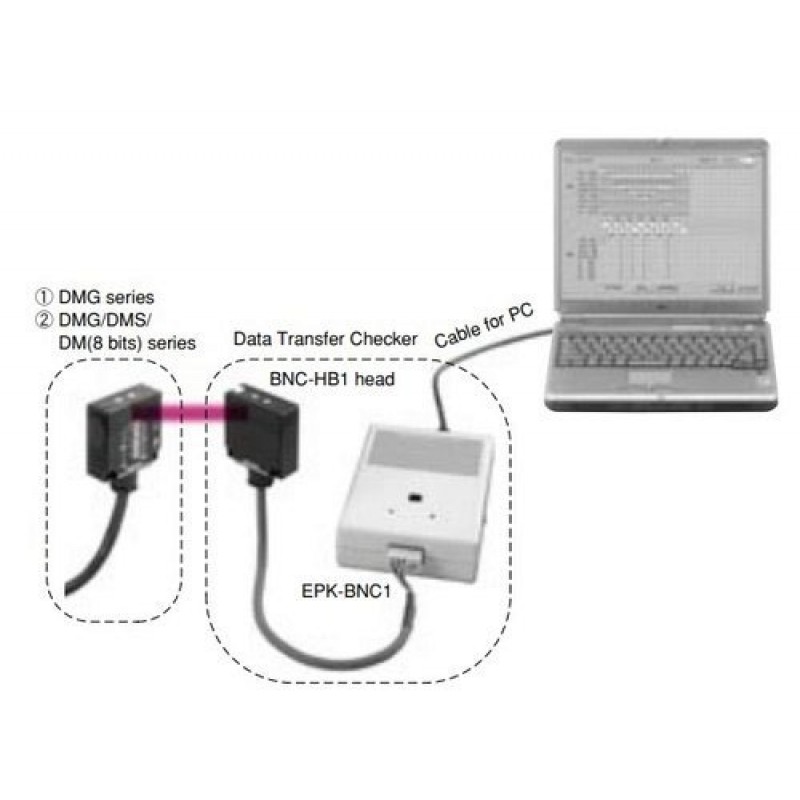

·         Hokuyo Data Flex SFOC When some troubles such as interlocking etc. happened, memorized data(Communication data) can be read out from DMG series and its data             can be displayed on PC. Refer to the above  about correspondent devices.
·         Hokuyo Data Flex RIS Under automatic transportation system on semiconductor and LCD manufacturing facilities, it is possible to make data com - munication as                    imaginary UTV(AGV, RGV, OHT etc.) or fixed passive equipment on the interlocking system with parallel I/O between UTV and passive equipment. Refer to the above              about correspondent devices.
