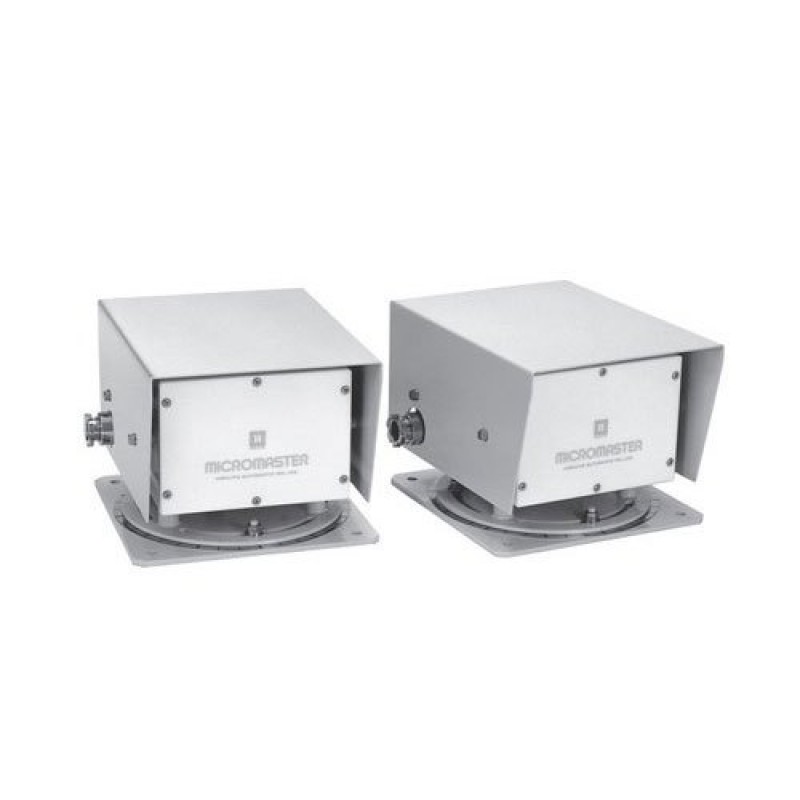

Close Crane Warning Device
Product Details :
Power Source | 100 to 110VAC/200 to 220VAC |
Power consumption | 3.2 VA |
Detecting distance | 0-20 m |
Hysteresis | 15% or less of detecting distance |
Microwave | 10,525 GHz |
Antenna | Horn antenna: directive angle 30 Degree (Horizontal and vertical) |
Response time | 50msec or less(400msec or less when returned) |
Control output | 1C relay contact |
Indicators | Power, operation, monitor(Normal, transmission trouble, reception trouble) |
Sensitivity adjustment | Course adjuster: 5 steps(5dB), fine adjuster: 5dB |
Connection | M4 screw terminal, applicable wire 3.5mm2 |
Weight | 12 KG |
Other Details:
MBX-211
Geometry setting system is applied and
detecting precision is high!
This is a microwave overhead traveling close crane warning device. Consisting of two sets of transmitte r/receiver installed oppositely, when two cranes appr oach each other until the both detecting areas overlap, the microwave of the oppo site side is mutually detected, and an alarm signal is executed.
·
This
device provides excellent detecting accu racy and axis is not dislocated by
vibration because of geometrical setti ng system utilizing the directivity of
horn antenna.
·
Malfunc
tion doesn't cause by leakage signal from opposite channel or reflective wave
from buildings because of synchronous setti ng of power fr equency.
·
Monitor
output which can check both transmission and reception of microwave provides.
·
This
device can get output in series from detecting distance to crane contacting
point without interlocking circuit by adjusting installing angle.
·
This
device can be used outdoor because characteristic of microwave isn't be affe
cted by direct light, wind or rain etc.
