DMG Optical Data Transmission Device With Logging Function

Product Details :

Transmission Capacity	8BIT
Transmission Method	Half duplex two-way transmission
Transmission Time	40msec or less
Modulation Method	Pulse modulation
Detection Method	Parity check
Light-projecting Element	Near infrared LED
Light-receiving Element	Photo transistor
Power Source	10V to 30VDC (Available voltage range)
Current Consumption	100mA or less

Other Details:
DMG Series
·         Useful to solve some troubles such as interlocking!

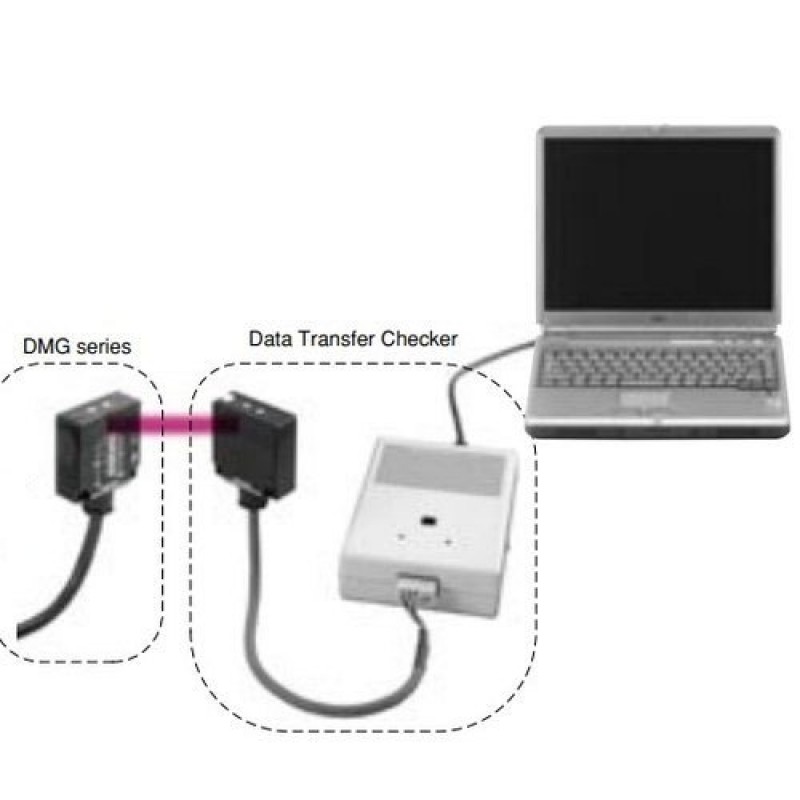

·         When some troubles such as interlocking etc. happened, memorized data(Logging data) in DMG series can be read out by optical remote controller type,              Data Transfer Checker(Option). Als o its data can be displayed on PC by application software(SFOC).
