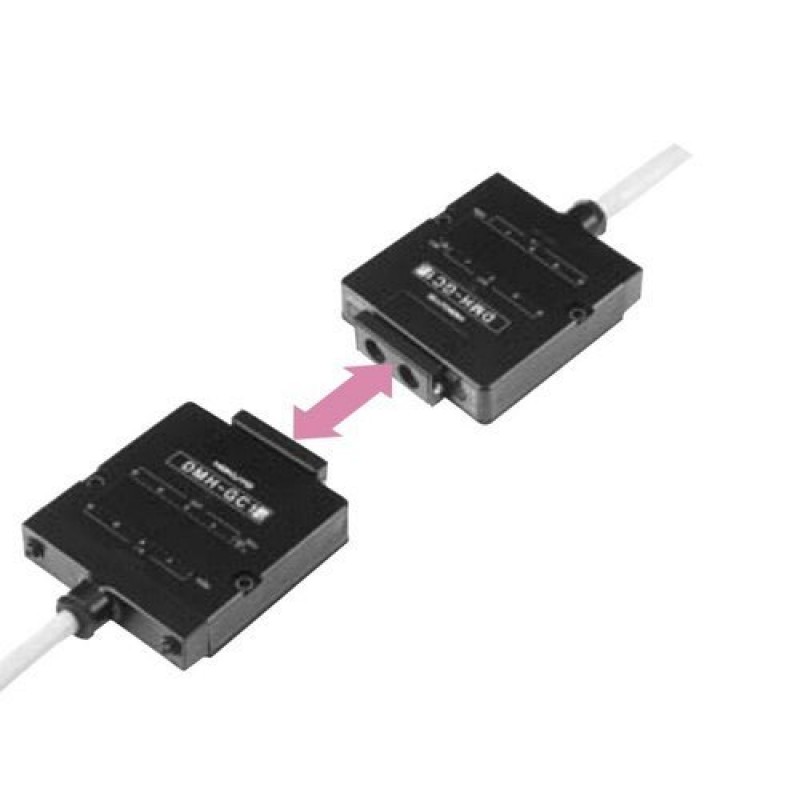

DMH Optical Data Transmission Device

Product Details :

Direction	Head-on, Side-on
Transmission distance	0 to 3m(Setting distance can be changed by adjuster)
Directional angle	Degree
Transmission capacity	16 Bit
Transmission method	Half duplex two-way transmission
Transmission time	15 msec
Modulation method	FSK modulation
Detection method	Bit-reverse comparing system
Power source	18V to 30VDC
Current consumption	150 mA or less
weight	400 GM

Other Details:
·         DMH-GC/HC is a data transmission device with 16-bit, high speed and long distance type(15m).
