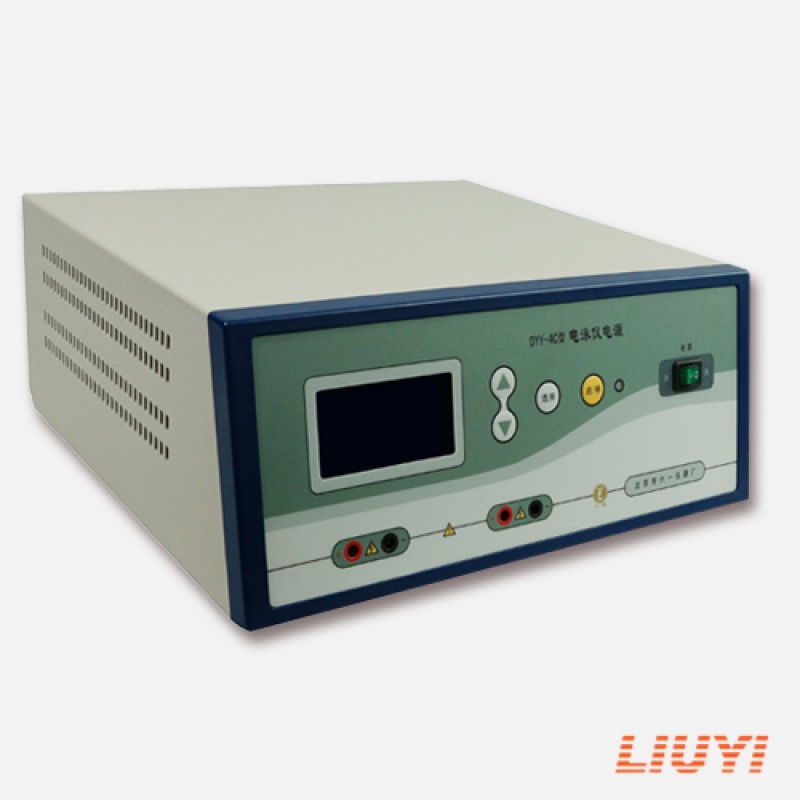

DYY-4C Electrophoresis Power Supply
Model: DYY – 4C
Features:
- We adopt the microcomputer processor as the control center of DYY-4C, ON/OFF switch.
- DYY-4C has the following strong points:small, light, high output-power, stable functions;
- The LCD can show you the following info.at the same time: voltage, electric current, pre-assigned time, etc.;
- It has the warning function of timing;
- It has the function of storing the operation parameters of last time;
- It can work in the constant state of voltage, or in the constant state of electric current, and it can be converted automatically according to the pre-assigned parameters for different needs;
- It has the protection function when it is under the circumstances of the unloaded, overload, suddenload change and when it is beyond the limitation
- Parameters can be adjusted finely during the running
- Output terminals: 2 pairs in parallel
Application:
- DYY – 4C is suitable for protein electrophoresis experiments
Specifications:
- Output voltage: 5 -1600V, (Increase or decrease: 2V/step);
- Output current: 2 –100mA, (Increase or decrease: 1mA/step);
- Output power: 160W;
- Size(W x D x H): 315 x 290 x 128 (mm);
- Weight: about 5.0 kgs.
