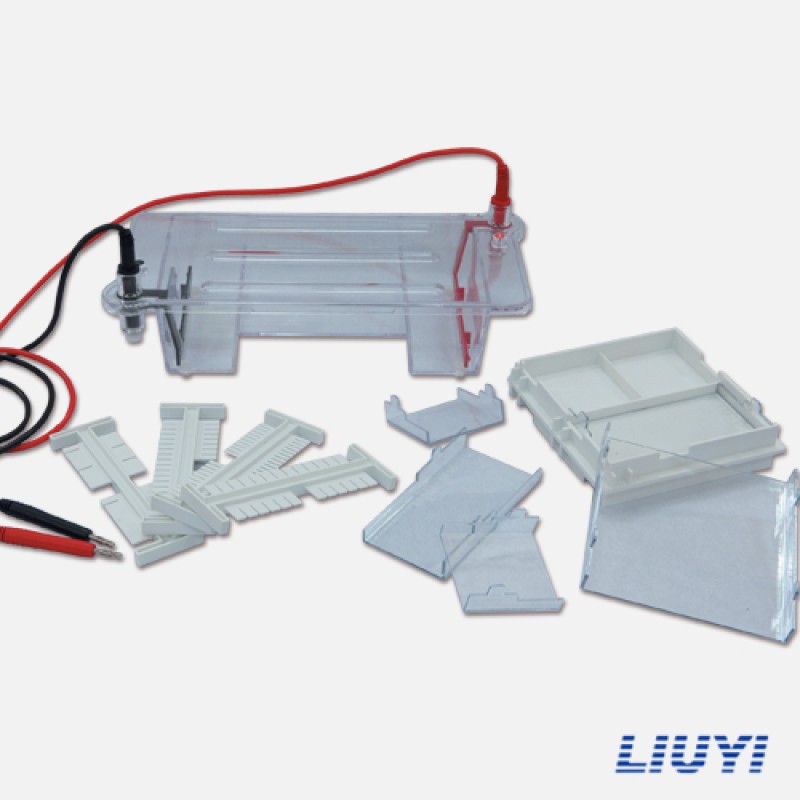

DYCP-31DN Electrophoresis Cell
Model: DYCP – 31DN
Features:
- Made from high quality Polycarbonate, exquisite and durable;
- It is transparent, convenient for observation;
- Withdrawable electrode, convenient for maintanence;
- Easy and simple for the end user to use;
- Special gel device for easy and fast gel casting operation;
- Black band on the gel tray make it convenient to load the samples and observe the gel;
- Save buffer solution;
- Power fails when you open the lid for user’s safe;
- Power fails when you open the lid for users’ safe;
- High resolution separation with simple operation;
- One gel casting device can cast different size of gel;
- Special comb design, one comb has two different teeth
Specifications:
- Gel dimensions: 60×60(mm),120×60(mm), 60×120(mm),120×120(mm) ;
- Runs up to 2+3 (2.0mm),6+13, 8+18 (1.5mm),11+25 (1.0mm) samples;
- Comb: thickness: 1.0 mm, 1.5 mm and 2.0mm;
- Buffer volume: 650 ml ;
- Weight: about 1.0 kg;
- Size (L X W X H):310 × 150 × 90(mm) ;
Applications:
- Submarine electrophoresis, for identifying, separating and preparing DNA and for measuring the molecualr weight of DNA.
Recommended Electrophoresis Power Supply
- DYY – 6C, DYY – 7C, DYY – 8C, DYY – 10C, DYY – 12C, DYY – 12.
