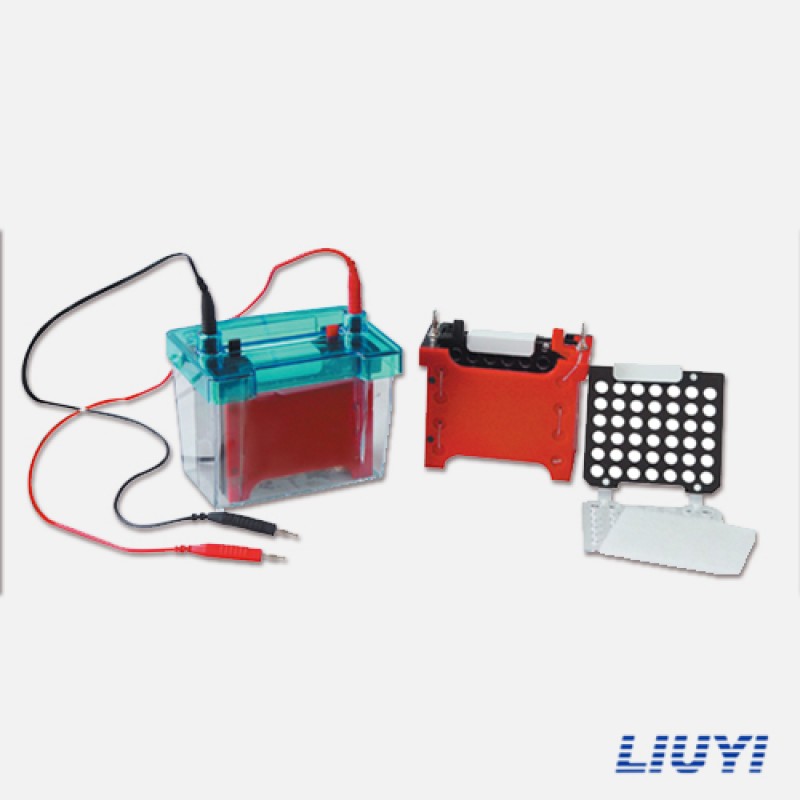

DYCZ-40D Electrophoresis Cell
Model: DYCZ – 40D
Features:
- Made from high quality acrylic with platinum electrodes;
- Latches on the gel holder cassette for easy handling;
- Fast transferring speed and good transferringeffect;
- A seamless, injection-molded transparent buffer tank prevents leakage and breakage;
- Allows easy orientation for rapid, error free set-up;
- An efficient design simplifies insertion and removal of the gel holder cassette from supporting body for transfer ( electrode assembly)
- Compatible with the lid and the buffer tank of DYCZ-24DN;
Specifications :
Dimension (LxWxH) | 140×100×150mm |
Blotting Area (LxW) | 87×95mm |
Continuous Working Time | ≥24 hours |
Buffer Volume | 400ml |
Weight | 1.0kg |
Applications:
- For transferring the protein molecule from the gel to membrane like Nitrocellulose membrane in the Western Blot experiment.
Suitable Electrophoresis Power Supply
- DYY – 7C, DYY – 10C,DYY – 12C ,DYY – 12.
Note:
- You can also only select the transfering core of DYCZ – 40D if you have already bought DYCZ – 24D or DYCZ – 24DN because the external tanks and the lids of these two models are the same.
