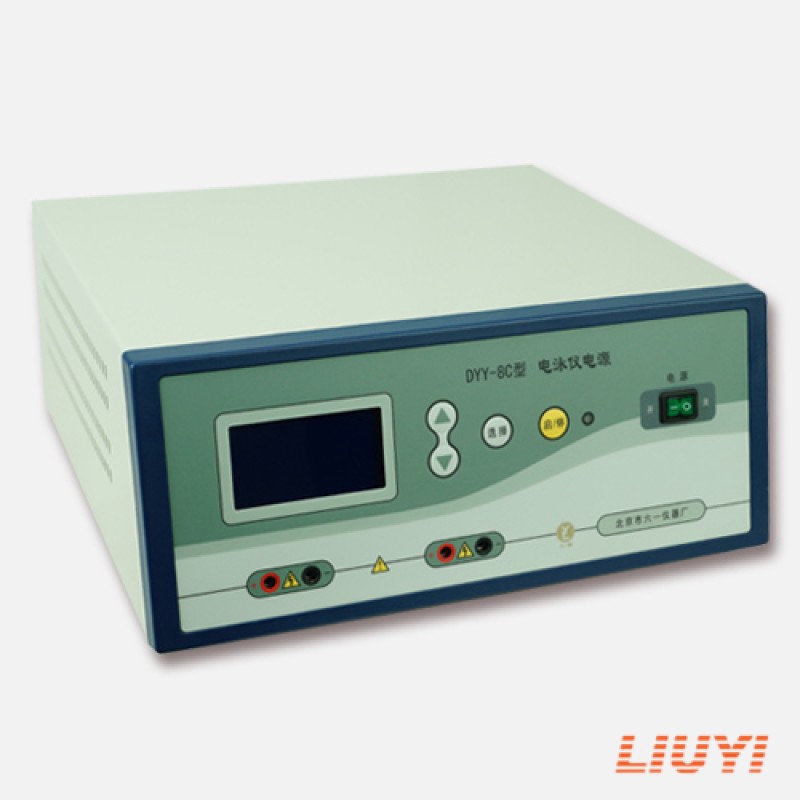

DYY-8C Electrophoresis Power Supply
Model: DYY – 8C
Features:
- We adopt the microcomputer processor as the control center of DYY-8C; ON/OFF switch. DYY-8C has the following strong points:small, light, high output-power, stable functions;
- The LCD can show you the following info.at the same time: voltage, electric current, pre-assigned time, etc.;
- It has the warning function of timing;
- It has the function of storing the operation parameters of last time;
- It can work in the constant state of voltage, or in the constant state of electric current, and it can be converted automatically according to the pre-assigned parameters for different needs;
- It has the protection function when it is under the circumstances of the unloaded, overload, suddenload change and when it is beyond the limitation;
- Parameters can be adjusted finely during the running;
- Output terminals: 2 pairs in parallel;
Application:
- DNA, RNA, Protein, Agarose, 2-dimensional electrophoresis
Specifications:/dt_highlight]
- Power requirement:A.C. 220V±10% (50Hz ±2% );
- Input power: about 200 VA;
- Output voltage: (5-600)V (Increase or decrease:1V/step);
- Output current: (2-200) mA (Increase or decrease:1mA/step);
- Output power: 120 W;
- Stability: constant voltage ≤1%; constant current ≤2%;
- Adjustment rate:constant voltage ≤2%; constant current ≤3%;
- Size(W x D x H): 315 x 290 x 128 (mm);
- Weight: about 5.0 kgs.
