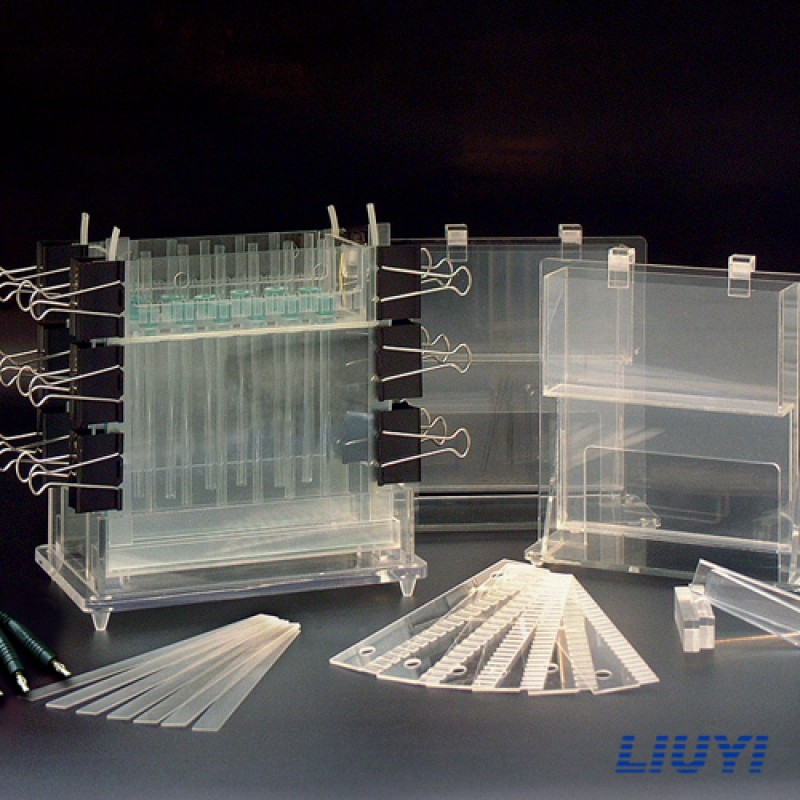

Electrophoresis Cell DYCZ-21
Model: DYCZ – 21
Features:
- Vertical system;
- Cooling tank;
- The tank body is made of the high transparent, insulative synthetic glass, and no leakage.
- Electrodes are made by pure platinum ( the purity quotient of the noble metal≥99.95%)which have the features of corrosion resistance of electroanalysis and withstand high temperature.
Specifications:
Gel dimension:
1) The real area of the gel plate : 170mm×170mm×1mm;
170mm×170mm×1.5mm
2) Tube gel: Ф1mm×170mm; Ф2mm×170mm;
- Runs up to 20 or 26 samples
- Comb thickness: 1mm and 1.5mm
- The inner diameter of glass tube: 1.0 and 2.0 (mm);
- The length of glass tube: 170 (mm);
- Buffer volume: about 600ml;
- Size (L X W X H):240×150×240 (mm);
- Weight: about 6 kg.
Applications:
For separating, purifying and preparing electriferous molecules, and for different kinds of polyacrylamide gel electrophoresis experiments, starch gel electrophoresis experiments, agarose gel electrophoresis experiments.They are also suitable for Iso-electric focusing (IEF) electrophoresis experiment, two-dimensional electrophoresis experiment, and preparative electrophoresis experiment, etc.
Suitable Electrophoresis Power Supply
- DYY-4C, DYY-6C,DYY-7C,DYY-8C,DYY-11 or DYY-11B
