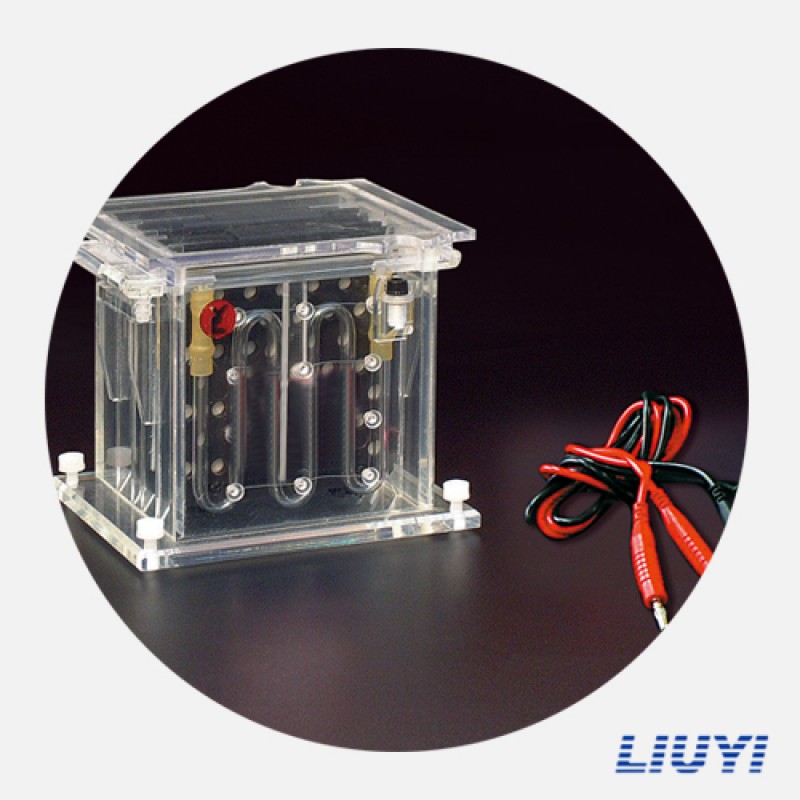

Electrophoresis Cell DYCZ-40B
Model: DYCZ – 40B
Feature:
- It has the cooling device;
- Double plates that can cast two gels at one time;
- The tank body is made of the high transparent, insulative synthetic glass, and no leakage.
- Electrodes are made by pure platinum ( the purity quotient of the noble metal≥99.95%)which have the features of corrosion resistance of electroanalysis and withstand high temperature.
Specifications:
- Gel plate dimension (L X W): 120 × 115 (mm);
- Buffer volume: about 1200 ml;
- Size (L X W X H):170×160×150 (mm);
- Weight: about 1.5 kg.
Applications:
- It is used for WesternBlot experiments in which the protein molecule can fast transfer from the gel to membrane like Nitrocellulose membrane ( cat.# No.: 241-0005, size : 150 x 150mm), and suitable for teaching and scientific research.
Suitable Electrophoresis Power Supply
- DYY-7C
