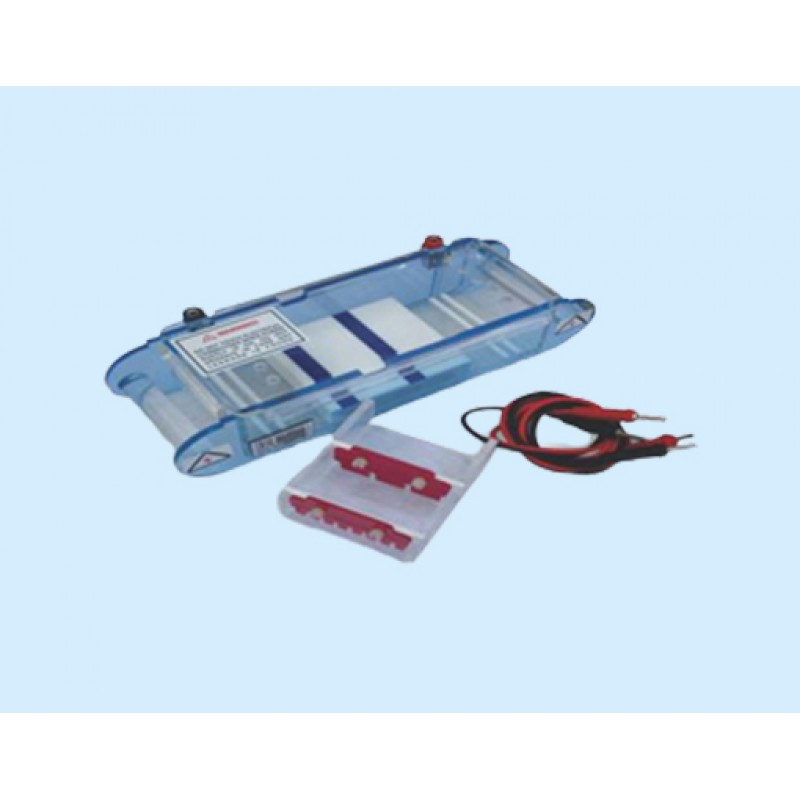

Submarine Gel Electrophoresis
Silent Feature :
- Dark background plate for easy visualization of wells for trouble-free sample loading
- 0.3mm thick platinum wire gives rapid and excellent running of samples
- Adjustable comb for controlling thickness of Agarose gel
- Plexiglas rod provision to make easy lifting
Standard Supply Includes:
- Buffer Tank with safety lid
- Attached electrode
- Gel running traysand combs
- Power Cord
Specification :
Cat No. | Model | Buffer Volume | Gel dimension | No of Wells | Qty of Combs | Maximum Samples |
---|---|---|---|---|---|---|
LZ0001 | Micro | 150ml | 7x4cm- one slot | 4 & 5 | 1 | 5 |
LZ0002 | Mini | 300ml | 7x5cm& 10x7cm- Two Slot | 8 & 3 | 2 | 16 |
LZ0003 | Midi | 500ml | 7x5cm& 13x10cm- Two Slot | 15 & 18 | 3 | 36 |
LZ0004 | Maxi | 1000ml | 20x15cm & 20x20cm-Four Slot | 26 & 30 | 4 | 120 |
