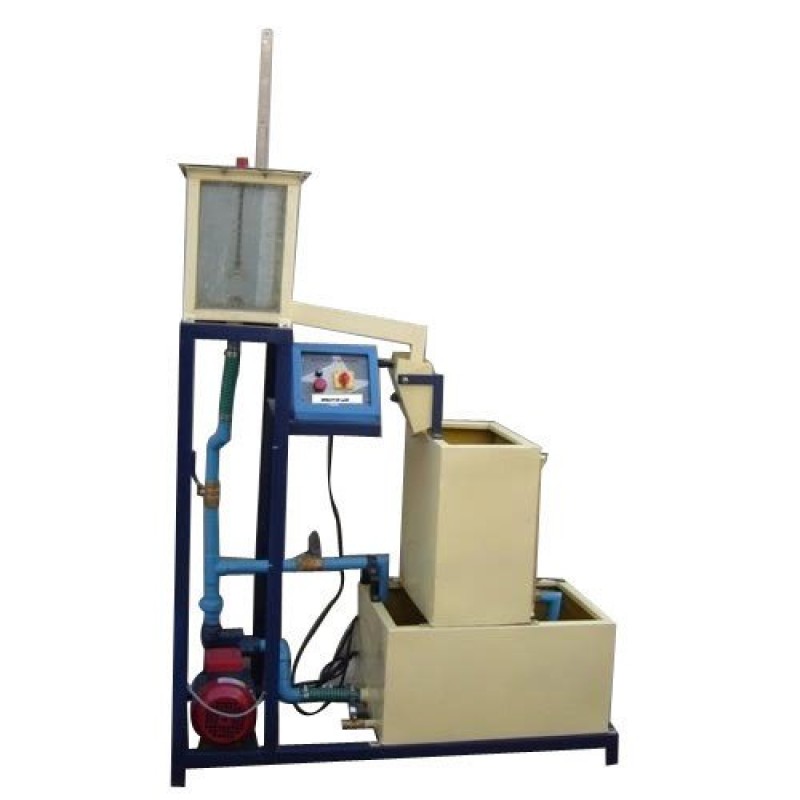

Impact Of Jet On Vanes
Product Details :
Brand | Reliant Lab |
Usage/Application | For Lab Experiments |
Material | Stainless Steel |
Phase | Single Phase |
Model Name/Number | RLFM-106 |
Features | Flow Measurement : Using Measuring Tank with Piezometer |
The setup consists of a clear Acrylic fabrication section. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem, which extends through the cover. A weight carrier is mounted on the upper end of the stem. The dead weight of the moving parts is counter balanced by a compression spring. The vertical force exerted on the target plate is measured for applied weights. Two targets are provided with the setup (flat plate and hemispherical cup)
