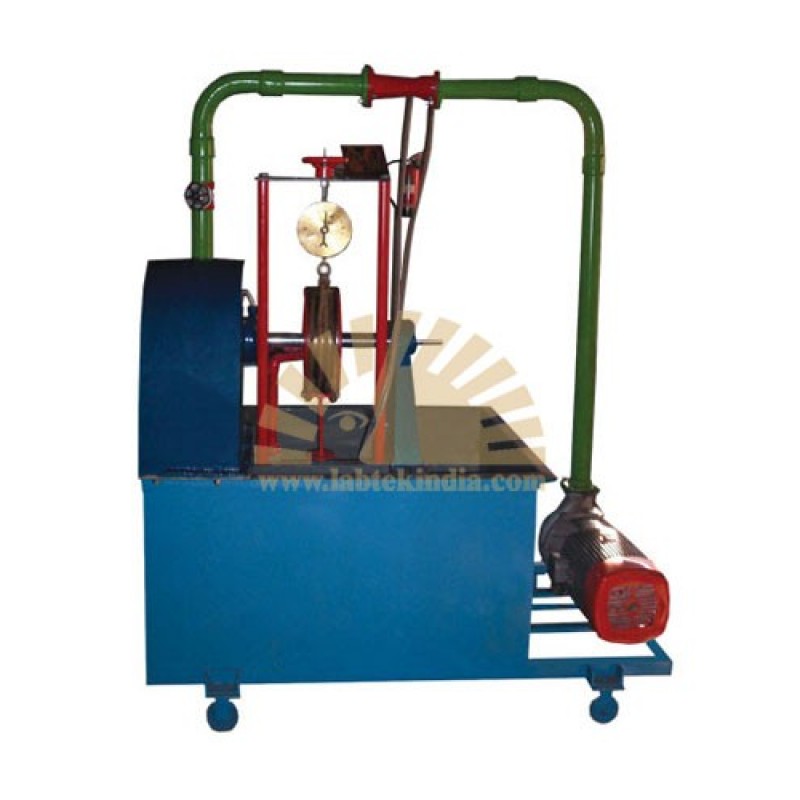

A. Pelton Wheel

Type

: Impulse

Capacity

: 5HP

Rated Speed

: 1000 RPM

Discharge Capacity

: 750 Liters/Minute

Supply Head

: 50 Meters

Buckets

: Gun Metal

B. Loading

: Rope Brake

Material

: Cast Iron

Drum Size

: 300 mm diameter

C. Supply Pump Set

Size

: 3 ½ X 2 ½

Discharge

: 750 Liters/Minute

Motor Capacity

: 15 HP, 3 Phase, 400 Volts, 50 HZ, AC

Make

: CRI/Sugna/Coimbatore

Starter for Motor

: Star Delta type- 3Phase TC/CROMPTON Make

D. Flow Measurement

Material

: C.I Body

Manometer Fluid

: Mercury

E.Pressure Measurement Pressure gauge

F. RPM Indicator

: Digital

G. Sump Tank

Material of Construction

: MS Powder Coating /M.S. FRP Lining/S.S Unit

Service Required

: Electrical supply-15 HP
