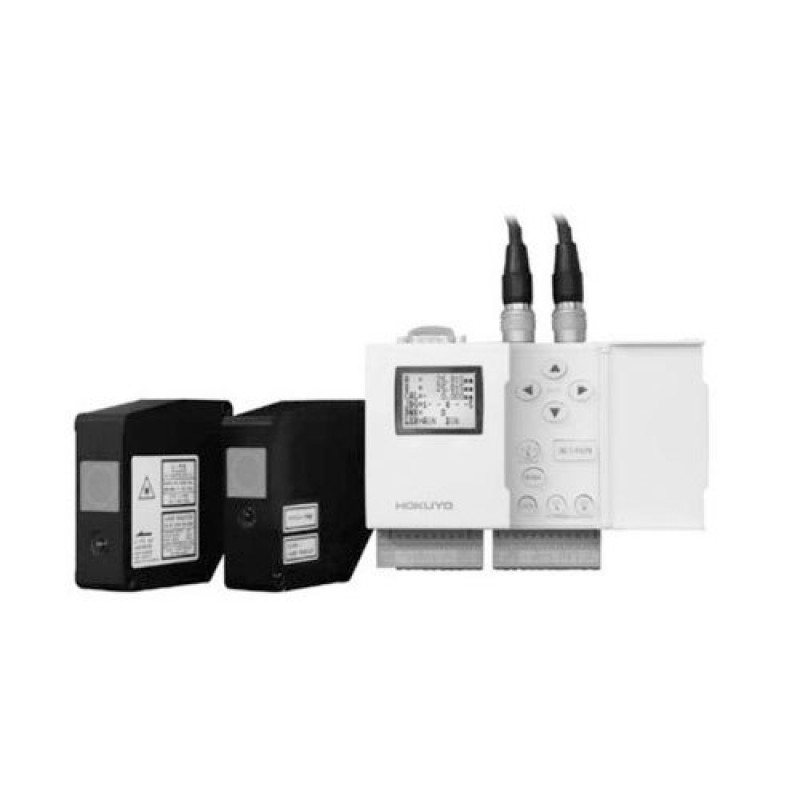

High Accuracy Laser Displacement Sensor

Product Details :

Power Source	12,24 V DC
Current consumption	270 mA
Measuring Range	25 MM
Light Source	Semiconductor Laser
Withstand Voltage	1000 VAC per Min
Protective Structure	IP 67
Weight	250 gm

LXA SERIES

High accuracy measurement with high sensitivity linear image sensor and electronic shutter
·         Linearity ±0 .1% of FS with high sensitivity image sensor.
·         Less affected by color, gross or material because of electronic shutter.
·         High-speed displacement sensor with sampling cycle 100μ sec.
·         Amplifier integrated monitor with controller.
·         Bank function with 8 channels.
·         5 kinds of individual comparator output.
·         Easy to handle with simple button and color LCD.
·         IP67 for sensor head.
