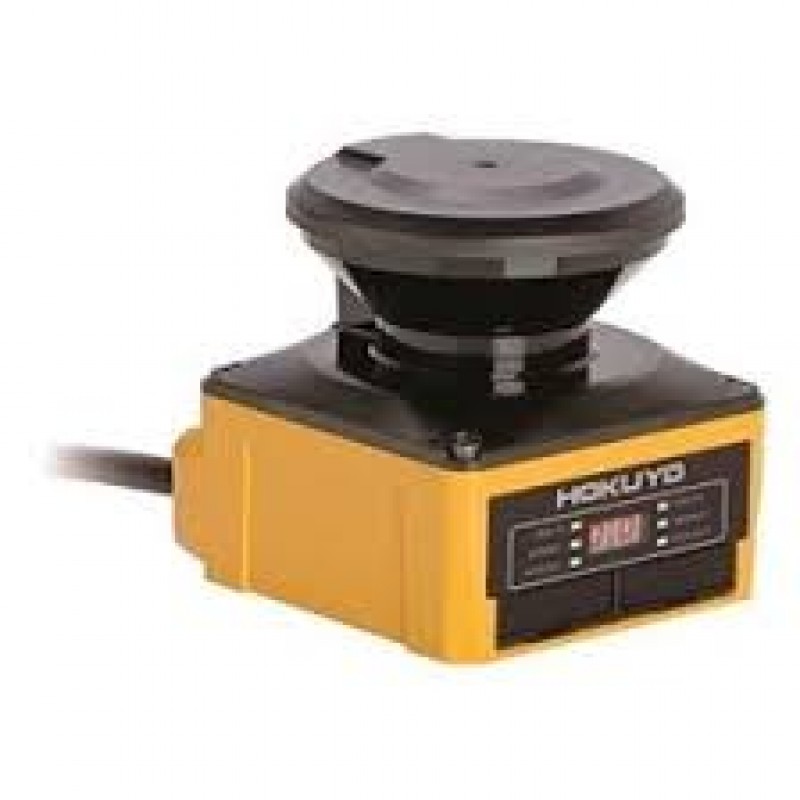

Hokuyo Safety Laser Scanner Sensors
Product Details :
Model Name/Number | UAM-05LP-T301 |
Brand | Hokuyo |
Type Of Operation | Hand free |
Connectivity Type | Wired |
Size | 80x80x95 mm |
Protection Range | Max 5m |
Warning Range | Max 20m |
Distance Tolerance | +100mm |
Detection Capability | From Black-Reflector sheet(1.8%) to Retro- Reflector Sheet |
Scan Frequency | 30 ms (Rotational Speed 2000 RPM) |
Area Pattern | Max 32 Pattern |
Element | Pulsed Laser Diode |
Wavelength | 905 nm |
Body Material | Aluminium |
Optical Window Materal | Polycarbonate |
UAM
Series - Safety Laser Scanner
World's
smallest Safety Laser Scanner, compact design for installation on AGVs &
AGCs as well as in vertical guarding applications.
Features
·
Model
no: UAM-05LP-T30 / UAM-05LP-T301C
·
Protection
zone : 5m 270 deg
·
Data
Output via Ethernet
·
Master-Slave
Function
·
Dual
Protection
·
Encoder
Input
·
Collision
Prevention
·
32
area patterns to accommodate the AGV travel path for collision prevention.
·
Detects
humans or object entering the hazardous area
·
Detects
access to critical zone. Reference boundary monitoring feature improves the
safety by detecting the gaps around the protection zone and sensor's
misalignment.
