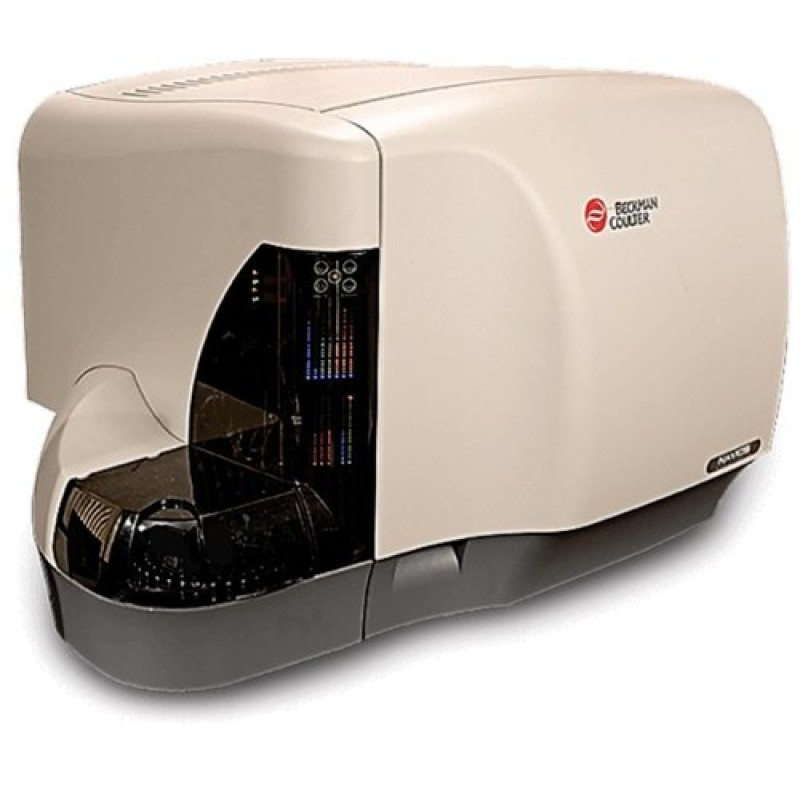

Beckman Coulter Navios Flow Cytometer
Product Details :
Model Name/Number | Navios |
Usage/Application | Hospital |
Brand | Beckman Coulter |
Sample Type | Whole Blood |
Sample Volume Range | 10-150 |
Throughput | 200 |
On Board Capacity | 300 |
Frequency | 60 Hz |
Detection | Photodiodes (forward & side scatter), Photomultiplier tubes (fluorescence) |
Resolution | HPCV is <2% |
Performance | <107 MESF for FITC, <64 MESF for PE, <13 MESF for PC5 |
Flow Cell | 430 micrometres x 180 micrometres rectangular channel |
Signal Processing | Digital System with 4 decade data display |
Voltage | 240 V |
The Navios EX flow cytometer offers a solution for advanced cytometry applications with workflows for high throughput laboratories. This is the next generation leveraging the laser and optics technology of our successful CytoFLEX research platform. Robust performance means peace of mind, because when analyzing important samples, every event matters.
- Up to 12 parameters for high complexity assays*; sensitivity and resolution; and quality, reproducible results
- With 10 colors*, collect additional data points from each sample,
- Reduce the number of samples to prepare along with the possible pipetting errors
Clinical Workflow
- Task scheduler powers up or off
- Bi-directionally interface with Laboratory Information Systems
- Manage test orders, create work lists, and track samples
Flexible Detection
- Wide angle scatter for distinguishing cells from debris
- Narrow angle scatter for detecting larger particles
- Scatter signal amplification for submicron particle detection
Stable Performance
- Thermoregulation system maintains the optical area at a consistent temperature
- Compensation settings maintained over time
- Accurate digital signal processing at high event rates and over time
