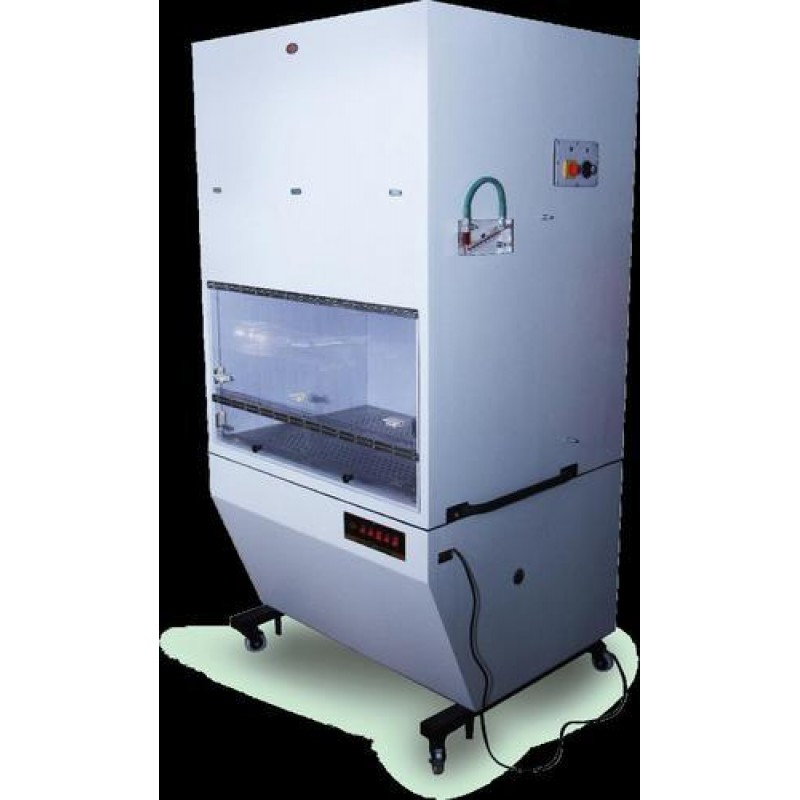

Biological Safety Cabinet

Product Details :

Biological Safety Cabinets ["Class100"] an integral factory assembled system, permitting total disinfections.  These are designed to use simultaneous primary biological and chemical containment.  The re-circulation of cabinet air through a second Hepa Filter [High efficiency particular Air-Mini Pleat type]offers a highest level of cleanliness.  Air is drawn through pre-filter and is made to pass through Hepa Filter having efficiency to pertaining all airborne particles of size 0.3 microne and larger.  Using a dynamic balanced motor with blower assembly system [1/5HP-1440 RPM] operates with minimum noise level and the contaminated air is going through the exhaust duct [1/4 HP motor-2880 RPM] fitted on the back bottom of the unit.  The basic unit made of good quality marine plywood with exterior epoxy water and chemical proof painted with putty finish/mica which includes standard accessories like static pressure manometer, Hepa Filters for cabinet [mini pleat type] Pre-filter, one UV light for the work area, one coak for gas.  It is suitable for handling medium to low risk organisms encountered in research, Investigation, Labs in all branches of Medical, Agriculture, and Pharmaceutical & Sciences.  The equipment is built with an exhaust system on the top of the unit having 4" dia PVC duct for the provision of connecting the pipe.  In addition to normal features of Vertical Laminar Flow, it is provided with following unique features.

1. Front door provided with acrylic glass in foldable manner2. Filtered Exhaust- Protests ambient environment, avoids build up, heat, fumes and odour3. Supplementary Air Barrier: - Prevents of contamination through make up air4. Built in U.V germicidal light- facilitates sterilization of working area before and after use, U.V Tube 'Philips'      (Holland) is used5. Cleanliness "CLASS 100" with an efficiency of 99.99%

NB: In accordance to its safety performance necessities and stipulations,the Bio Saftey Cabinet (Class II) can be

 constructed in the following types.  Type A  : 70% air (approx) re circulating & 30% exhausting  Type B1: 30% air (approx) re circulating & 70% exhausting Type B2 : 100% exhausting and no re circulation Bio Saftey Cabinet (Class I) can be supplied

Optional

a) Virus burnout chamber can be supplied at an extra cost.b) Dwyer magnehelic guage.c) Glass Bead Sterilizer 2" dia 4" depthd) Infra red activated sterilizer can be suppliede) For Type B-2,Carbon HEPA Filter (for filtering air prior to discharge the outside area)
