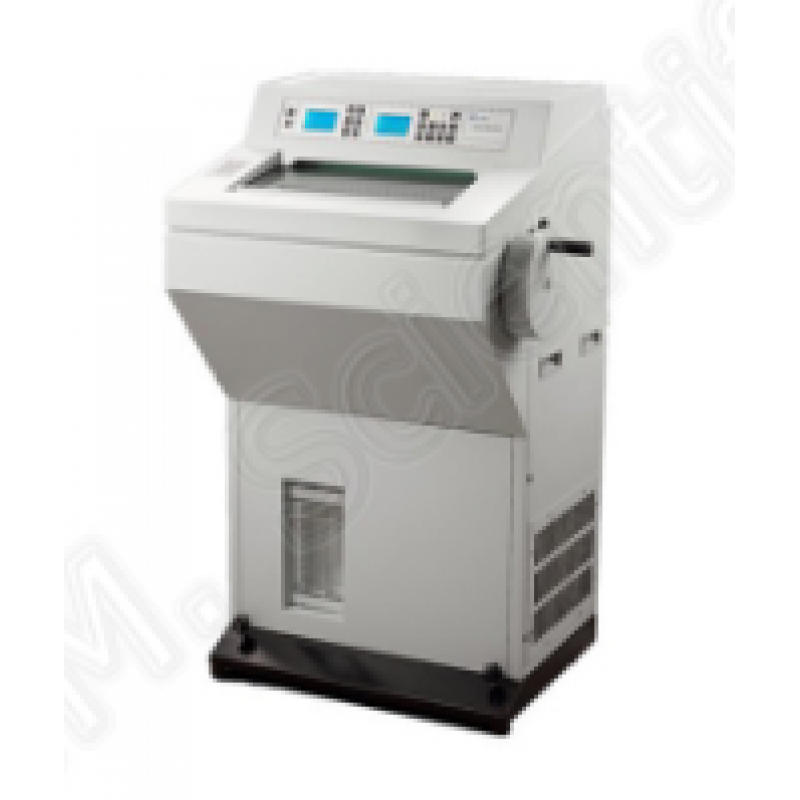

Cryostat Microtome
Product Details:
JINDAL cryostat microtome is designed for sectioning of natural tissue. These are specially designed for clinical and research operations. Sections have the high resolution of cytological details required for pathological diagnosis, histochemistry, fluorescence, biochemistry, microscopy etc. Technique is simple and easy to learn.
The unique dual compressor cryostat is equipped with double cooling circuit which allows specimen cooling separate from the cryo chamber & the freezing shelf. The user can set the temperature of specimen independent from cryochamber.
Features:

• Large Spacious Stainless steel cryo chamber
• Anti microbial powder coating with galvanized steel sheet construction

• Motorized specimen feed coarse advance with specimen retraction
• CFC free refrigerant with noiseless compressor to achieve low temperatures up to -35°C

• Heated sliding glass door to prevent condensation
• Microprocessor based touch screen operation

• Automatic & manual hot gas defrosting
•  Easy selection from cutting to trimming by touch of a button
  Adjustable cutting angle
  Mounted on castors for easy movement
  UV sterilization which can be activated by touch of a button
  Ergonomic design blade holder with finger guard for safety & anti roll device
  Enclosed Drainage system
  Encapsulated splash protected microtome
  User friendly menu with section counter
  Separate compressor for specimen cooling up to -35°C
  LED illumination for the cryo chamber
  Modular Design Control system:
  Chromatic LCD touch screen for user friendly operation
  Hibernation automatically/manually, wake up in 15 minutes
  UV Sterilization at touch of a button
  Peltier cooling station for quick freezing of specimens
  Section thickness totalizer with section counter
  Slow & fast speeds of specimen feed forward & reverse
  Microtome:
  Smooth & light handwheel with locking device lever
  X-Y-Z 8° specimen orientation triaxially adjustable
  Precise durable roller guides made in Germany ensures easy sectioning of hard tissue samples & provides smooth movement
  Adjustable retraction & can be turned off
  Cryo Chamber:
  Large spacious stainless steel chamber with large freezing shelf to hold up to 20 specimen discs
  With waste tray & instrument rack
  Heat Extractor in quick freeze shelf
  Disposable Blade Holder:
  Designed to use both High & low profile blades
  An anti-fatigue cam lock ensures blades clamp tight
  The blade holder can move laterally for safety & to ensure full use of the blade
  Glass anti roll device to adjust the angle & gap with the pressure plate
  Steel push rod to eject the blade
  Technical Specifications:
  Temperature of Cryo Chamber : Adjustable Up to -35°C
  Temperature of Specimen : Up to -35°C
  Temperature of Quick freeze shelf : Up to -45°C
  No. of freezing stations : 20
  No. of peltier cooled quick freeze stations up to -60°C : 2
  Defrost : 1 automatic defrost cycle per 24hr/manual(duration 12 minutes)
  Motorized Coarse feed : Slow 600um/sec ; Rapid 900um/sec
  Range of Section Thickness : 0.5um to 100um
  0.5um – 1um in increments of 0.5um
  1um – 10um in increments of 1um
  10um – 20um in increments of 2um
  20um – 50um in increments of 5um
  50um – 100um in increments of 10um
  Range of trimming Thickness: 0 to 500um in increments of 5um
  0um – 20um in increments of 2um
  20um – 50um in increments of 5um
  50um – 100um in increments of 10um
  100um – 500um in increments of 50um
  Total Specimen feed : 28mm
  Vertical stroke : 60mm
  Maximum specimen size : 55 X 55mm
  Refrigeration Capacity : 690W X 2
  Refrigerant : R404A ; 300g±5g
  Designed to operate on 220V/50Hz AC Supply or 110V/60Hz AC Supply
  Input Power : 1300 VA
  Dimensions of the machine : 780mmL (705mm without handwheel) X 700mmW X 1152mmH
  Net Weight : 200Kg.
  Optional Features:
  Vacuum attachment to prevent rolling of sections
