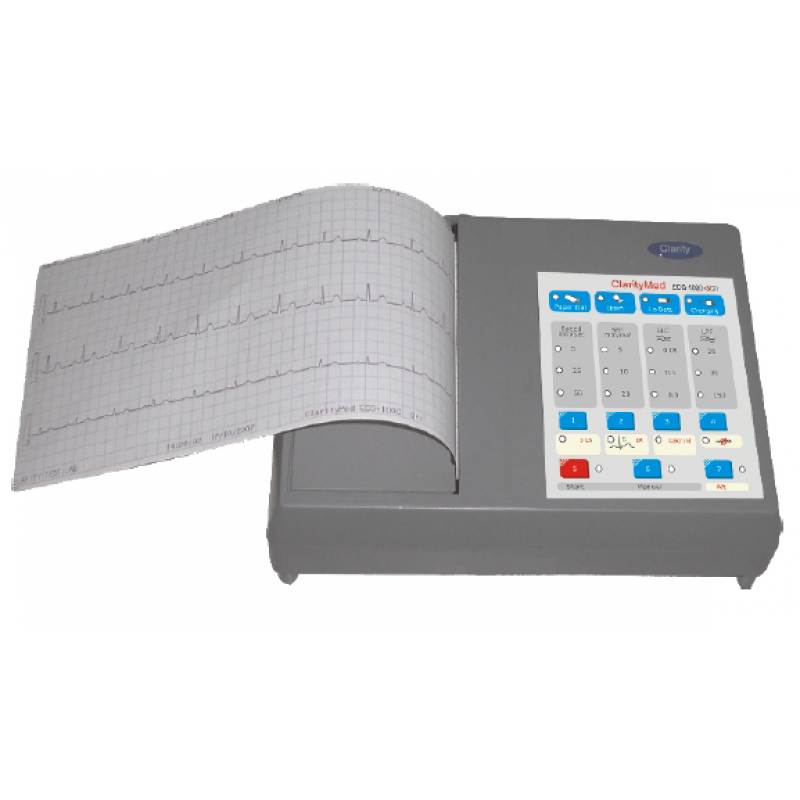

ECG 100D-3Ch

Features :

• All functions accessible through seven button keypad.
• Bright LEDS indicate important functions and settings.
• Equipped with "TISA" - True Interpretation Sensitivity Algorithm.
• Detailed Interpretation package.
• Personalized tracings with user's name (User editable).
• 3 Channel Print Format.
• Excellent recording quality with its high resolution printer.
• Quantitative analysis of the tracings.
• Simultaneous 12 lead acquisition.
• Compact and portable.
• Link to PC (Optional).
• Simple operation (Get report with single key press).

Specifications :

Leads : Standard/ Cabrera

CMRR : > 90 dB

Input Impedance  : > 100 M on each electrode

Dynamic Range : ± 4.25 mV

Frequency Response : 0.05 - 150 Hz (-3dB) without filters

Time Constant  : 3.2 Seconds

A/D Conversion : 12 bits, 12 leads simultaneous acquisition.

Sampling Rate  : 1600 samples/ sec/ channel

Paper Speed   : 5, 25, 50 mm/sec

Printing Paper  : 106 mm wide thermal paper in 20 m roll

Sensitivity : 5,10, 20 mm/ mV

Filters   : Complete digital processing to reduce mains interference, muscle tremors and base line wander.

Memory : 10 seconds for all 12 leads. Multiple patients (Optional).

Operating Modes   : Manual/ auto.

Defibrillation Protection   : Internal at apparatus.

Pace maker detection : > ± 2 mV/ > 0.1 ms

Print out : 3 channel options

Flexible reporting   : Reports of stored ECG can be copied for print with new selection of filters, speed and sensitivity.

Serial Interface : RS232 PC interface for data management and ECG viewing/ reporting (ECG PC link software optional)

LED Indicators : Mains connected, low battery, no paper, loose electrode

Weight   : 1.5 kgs. with battery

Dimensions (mm)   : 216 (L) x 147 (W) x 61 (H)

Battery   : 6V, 3.3 AH Sealed lead battery. Can give more than 50 ECG recordings on a single charge.

Recharging Time   : 12 Hrs for fully discharged battery.

Operating Environment :

• Temperature : 5 to 450C
• Humidity : 5 to 95% RH (non-condensing)

Standard Accessories :

• Patient cable          1 No.
• Gel bottle              1 No.
• Paper roll                    2 Nos.
• Limb electrodes          4 Nos.
• Chest electrodes          6 Nos.
• Adapter                    1 No.
• Carry bag                    1 No.
• Instruction manual 1 No.

Optional Accessories :

• Rechargeable battery
• Pediatric electrodes
