Human body Temperature Scanner / Detection
Product Details :
Brand | Flir |
Model Name/Number | E75, E85 |
Usage/Application | Hospital |
Color | Arctic, Gray, Iron, Lava, Rainbow and Rainbow HC |
Resolution | 320x240 |

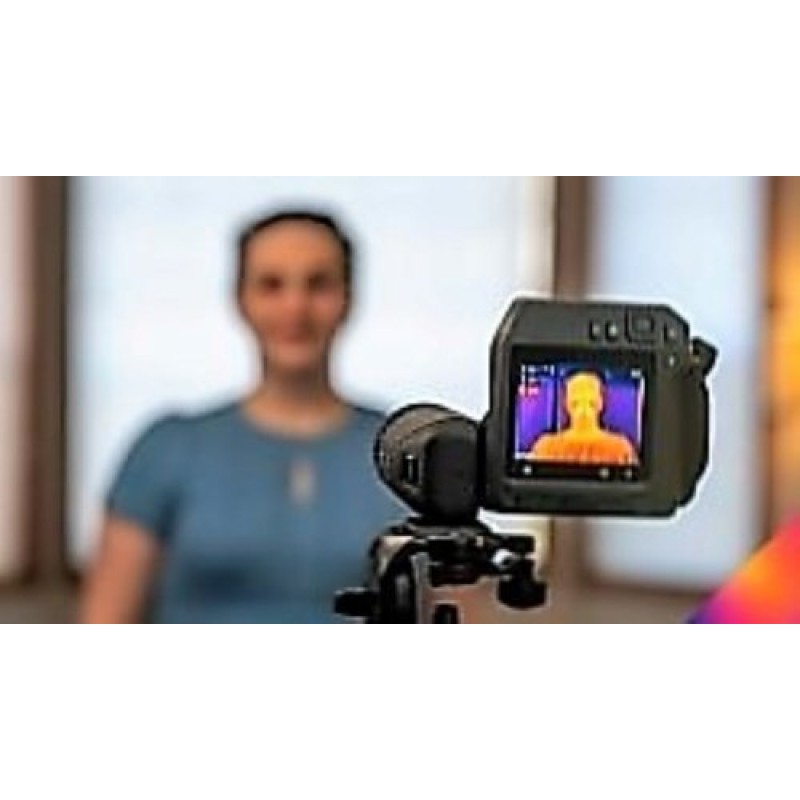

Thermal Imaging Camera for Elevated Human body Temperature Detection
- IR resolution: 320 × 240 pixels or more
- Screening Mode (must have this feature in camera to screen Human being) with 0.5°C (0.9°F) accuracy @ 37°C (98.6°F) with reference
- Audio Alarm: Audible alarm if the object temperature is above set temperature range
- Object temperature range: 20°C to 50°C at least
- Accuracy: ±2°C or ±2% of reading
- Field of view (FOV) : 24° × 18° or less
- Spatial resolution (IFOV) :1.31 mrad/pixel or less
- Thermal sensitivity/NETD: <40 mK or less @ +30°C
- Minimum focus distance: 0.15 m
- UltraMax (super-resolution): Facility should be available to achieve 640x480 pixel resolution
- Image frequency: 30 Hz or more
- Focus: Continuous, one shot & manual
- Digital zoom: 1-4x continuous
- Detector type: Focal plane array (FPA), uncooled microbolometer
- Spectral range: 7.5–14 µm
- Display: Touch screen, 4.0 in. LCD, 640 × 480 pixels or more
- Auto Orientation: Yes (should be available)
- Programmable buttons: Should be available
- Spot meter: minimum 1 in live mode
- Area: minimum1 in live mode
- Image adjustment: Auto, Auto max, Auto min & manual
- Image modes: IR image, visual image, high spectral image, picture in picture, thumbnail gallery
- Picture in Picture: Resizable & movable IR area on visual image
- Automatic hot/cold detection: Auto hot or cold spot meter markers within area
- Color alarm (isotherm): Above, below, interval, condensation & insulation
- Difference temperature: Delta temperature between measurement functions or reference temperature
- Reference temperature: Manually set or captured from any measurement function
- Emissivity correction: Variable from 0.01 to 1.0 or selected from materials list
- External optics/windows correction: Automatic, based on inputs of optics/window transmission and temperature
- Color palettes: Arctic, Gray, Iron, Lava, Rainbow and Rainbow HC
- Image storage: Standard JPEG, including measurement data (Infrared-only mode)
- Remote control operation: Should be possible using USB cable) &with Mobile device using Wi-Fi
- Voice Annotation: 60 seconds (via Bluetooth)
- Text Annotation: Text from predefined list or soft keyboard on touch screen
- Visual image annotation: Yes
- Sketch: From touch screen
- Compass: Yes
- Laser distance meter information: Yes
