Medical Oxygen Concentrate
Product Details:

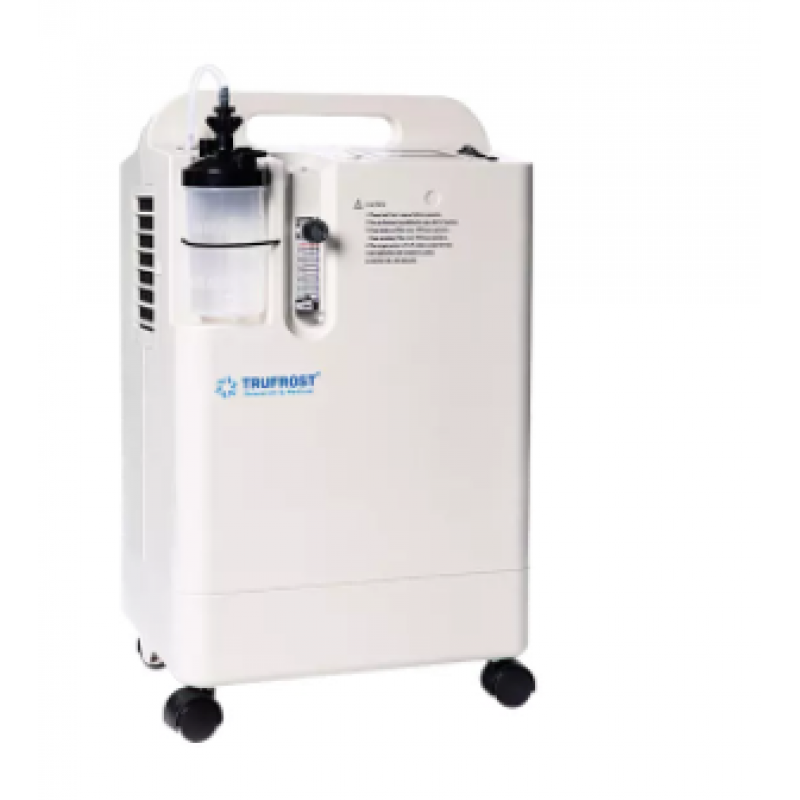

Trufrost portable oxygen concentrators are designed for a flow rate of 1-5 L/minute and oxygen concentration of 93% ( ± 3%) and comes with alarms for power failure, high and low pressure, low oxygen purity and low flow.
Key Features
- Filters are easy to replace and wash
- The metal outlet is designed to be used with the humidifier adaptor
- The easy dial flow control, makes setting the flow easy for any patients
- Innovative big size LCD display convenient to view the operating parameters
- US humidifier bottle with 6 PSI pressure relief valve, comfortable to inhale oxygen
- Inner case housing adopt ceramics technique,non spray paint
- Customized mute cotton make sure non pulverization phenomenon min 3 years
- The inside pipeline use the medical grade silicone tube and nylon tube, more safe than industrial silicone tube and plastic tube, no pollution, no peculiar smell
- Cooling system: copper tube and aluminum fins, compare with only aluminum or copper tube, better for heat dissipation and ensure the machine to continuously work for 24 hours without overheat interruption.
Technical Specification
Specification | Modal : JAY-5BW |
Oxygen Flow Rate Range | : 5L/Min(can be adjusted 1L-5L/min) |
Oxygen concentration | : 93% ±3% |
Noise | : Level less than 45dB |
Outlet Pressure | : 40kPa-70kPa (6-10 PSI) |
Atmospheric Pressure Range | : 86kPa-106kPa |
Features | : Replaceable and washable filters, Suitable for 24hrs operation |
Alarm | : Power failure alarm, compressor overheating stop alarm, low flowrate alarm, high & low purity alarm (less than 82%) When oxygen purity is < 85%, the blue lamp is on, when oxygen purity is <85%, red lamp is on, indicating low purity Accuracy: ±3% |
Product Size | : 360x300x600mm |
Gross Weight/Net Weight | : 24/22Kgs |
Rated Power | : 540W |
Power Supply | : 220V, 50Hz, 1Ph |
Color | : Off-white |
Certifications | : CE, ISO-13485 |
