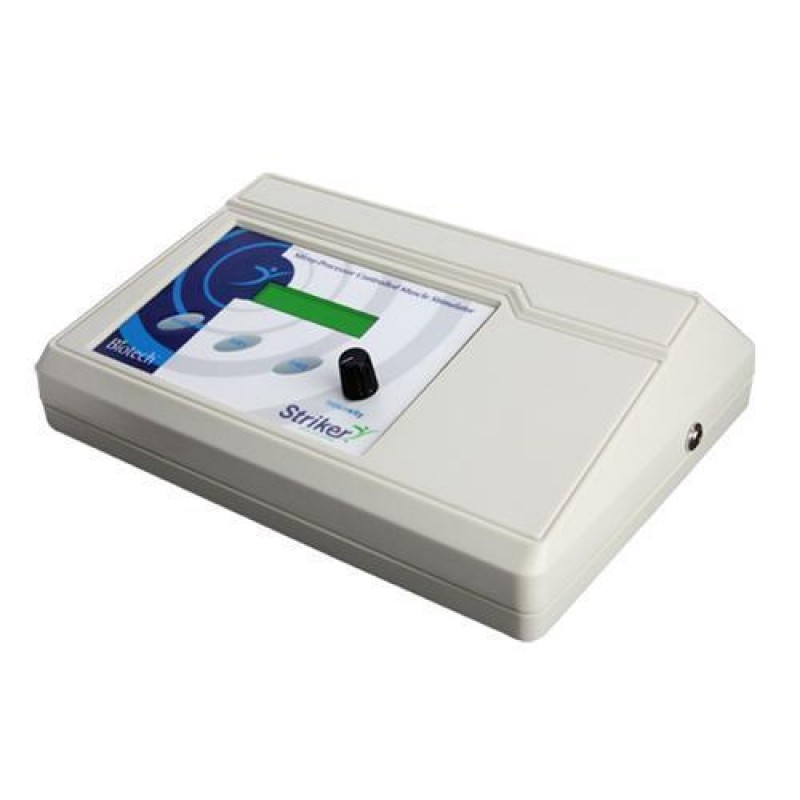

Microcontrol Diagnostic Muscle Stimulator

Product Details :

Owing to our in-depth domain expertise, we are providing a qualitative range of Microcontrol Diagnostic Muscle Stimulator. Designed and manufactured as per industry standards using the finest quality raw material at vendors end, our offered product range is available in diverse specifications to fulfill the wide requirements of our esteemed clients.  In addition to this, clients can avail this product from us in customized options and at market leading prices.

Features:

• Galvanic:Pure DC Current up to 100Ma.
• Interrupted Galvanic:Unipolar DC output at Different Rate and Pulse Width
• Rate:1,3,50 & 100 pps.
• Width: 0.01,0.03,0.1,1,0.3,1,3,10,30,100 & 300 milliseconds.
• Output:0 to120 V.
• Faradic:Continuous pulse train of 100 pps & width 0.5 milisecond.
• Surged Faradic:Same out put as Faradic with slow rise sawtooth mode.
• Rise:0.5 to 3.0 second in six steps.
• Rest:0 to 9 seconds in 10 steps.

TNS:

a)Continuous:Frequency variable from 4 to 150 Hz.

b)FM:It automatically generates impulse rates from 4 to 150 Hz.

c)PWM:It automatically generates impulses of variable pulse width from 30 to 300 micro second.

Display:Back lite,two line LCD Display.

Additional Information:

• Item Code: 01000
