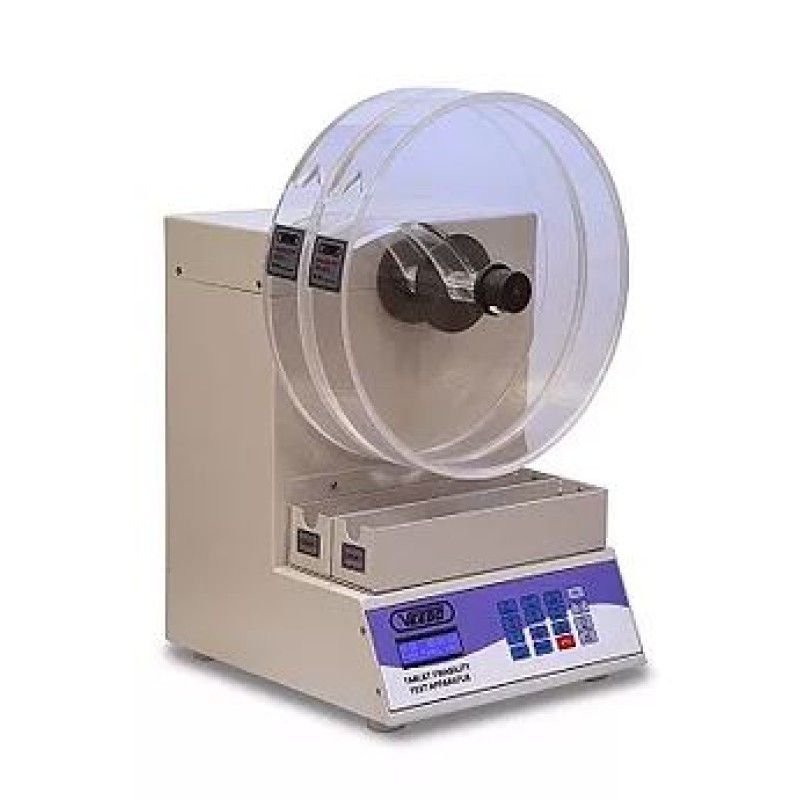

TABLET FRIABILITY TEST APPARATUS

Specifications:

• Advanced microprocessor-based circuitry.
• Programmable Modes: Timer or Rotation.
• Designed with a 10° tilt feature, used when the shape or size causes irregular tumbling.
• The two acrylic drums having a slot positioned to automatically discharge the tablets.
• Provides connectivity to balance via RS 232 interface to weigh the tablets.
• Supports Abrasion Drums
• Front loading system.
• Interlocking mechanism to ensure correct drum position
• Advanced micro-controller circuitry and user friendly software.
• Alpha Numeric Splash proof keyboard for entries like sample name, batch number for data authentication.
• Programmable Modes: Timer or Rotation.
• Easy tablet loading.
• The drums have a slot positioned to automatically discharge the tablets into the ma gnetic trays, at the end of the test without dismantling the drum assembly.
• Total number of drum revolutions can be set in the range of 1 to 9999.
• Report printout complies with GLP specifications.
• Error message to trace out the problem.
• Instrument complies with USP, BP, and IP specifications.
• Instrument will tilt 10 Degree as per specification.
• It supports regular friability drum & abrasion drum.
• Calculation mode for friability percentage will be indicated on the display as well as print.
• Balance interface for sample weight transfer.
• For Test report: Parallel port.
