Ultra Sound 1 & 3
Product Details:
Usage | Personal |
Brand | EIE POLAND |
Model Number/Name | SONOTRONIC |
Material | PLASTIC |
Intensity | 3 WATT |
Dimension | 335 x 270 x 125 [mm] |
Treatment Time | 99 |
Mains Voltage | 220V 50 HZ AC |
Maximum Output | 3 WATT |

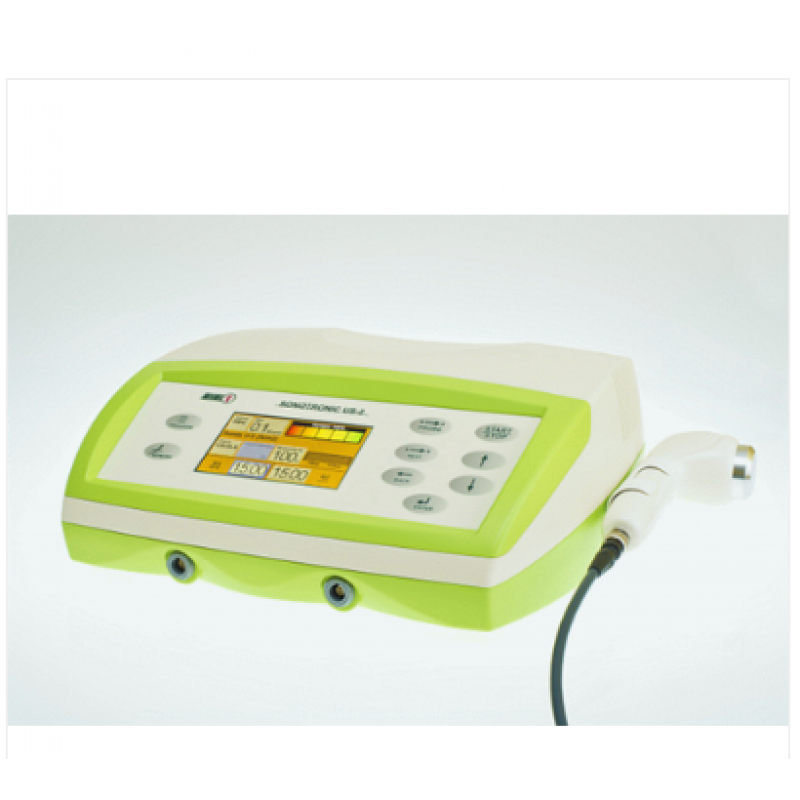

Modern ultrasound therapy unit
CHARACTERISTICS
Big, color graphic screen (4,3”) with touch panel.
User-friendly operation by touch screen and buttons.
Double-frequency probes:
1MHz and 3,3MHz in 5cm2 or 1cm2 size
Continuous and pulsed work mode
Two ergonomic handle versions
Water-resistant probes
Regulation of impulse duty factor is smooth or discreet
Sound and visual signal of contact of the probe with patient
Ready to use programs for typical illnesses
User’s own programs – with easy to use screen keyboard
Counters of number and time of treatments
APPLICATION
Ultrasound therapy may be used for treatment of:
degenerative joint diseases
pain syndromes
post-traumatic states, fractures, contusions
ulceration, scars
contracture
inflammatory states
rheumatic diseases
neuralgia, neuritis
selected internal diseases
ACCESSORIESStandard
therapy gel
User’s manual
spare fuse
Optional
ultrasound heads:
SU-5: 5cm2 area; 1MHz and 3,3MHz frequency
SU-1: 1,33cm2 area; 1MHz and 3,3MHz frequency
transportation bag
TECHNICAL DATA Ultrasound parameterscontinuous power2,5W/cm2peak pulse power3W/cm2radiation frequency1MHz or 3,3MHzpulse frequency10-150Hzduty factor smooth:5 – 100%, one step 5%discreet:6,25%; 12,5%; 25%; 50%Other parameters treatment clock1 sec - 30 minpower supply1-phase net ~230V 10%, 50Hz, 50VAelectric safety classI type Bambient temperature10°C - 40°Crelative humiditydo 85%dimensions335 x 270 x 125 mmweight (of control unit)2.5 kg
CHARACTERISTICS
Big, color graphic screen (4,3”) with touch panel.
User-friendly operation by touch screen and buttons.
Double-frequency probes:
1MHz and 3,3MHz in 5cm2 or 1cm2 size
Continuous and pulsed work mode
Two ergonomic handle versions
Water-resistant probes
Regulation of impulse duty factor is smooth or discreet
Sound and visual signal of contact of the probe with patient
Ready to use programs for typical illnesses
User’s own programs – with easy to use screen keyboard
Counters of number and time of treatments
APPLICATION
Ultrasound therapy may be used for treatment of:
degenerative joint diseases
pain syndromes
post-traumatic states, fractures, contusions
ulceration, scars
contracture
inflammatory states
rheumatic diseases
neuralgia, neuritis
selected internal diseases
ACCESSORIESStandard
therapy gel
User’s manual
spare fuse
Optional
ultrasound heads:
SU-5: 5cm2 area; 1MHz and 3,3MHz frequency
SU-1: 1,33cm2 area; 1MHz and 3,3MHz frequency
transportation bag
TECHNICAL DATA Ultrasound parameterscontinuous power2,5W/cm2peak pulse power3W/cm2radiation frequency1MHz or 3,3MHzpulse frequency10-150Hzduty factor smooth:5 – 100%, one step 5%discreet:6,25%; 12,5%; 25%; 50%Other parameters treatment clock1 sec - 30 minpower supply1-phase net ~230V 10%, 50Hz, 50VAelectric safety classI type Bambient temperature10°C - 40°Crelative humiditydo 85%dimensions335 x 270 x 125 mmweight (of control unit)2.5 kg
Ultra Sound 1 & 3
- Views: 68
-
Medica Podium - Vendor Type: Manufacturer, Supplier
- Product Code: SONOTRONIC
- Availability: In Stock
- ₹0
