PRODUCTS DESCRIPTION :

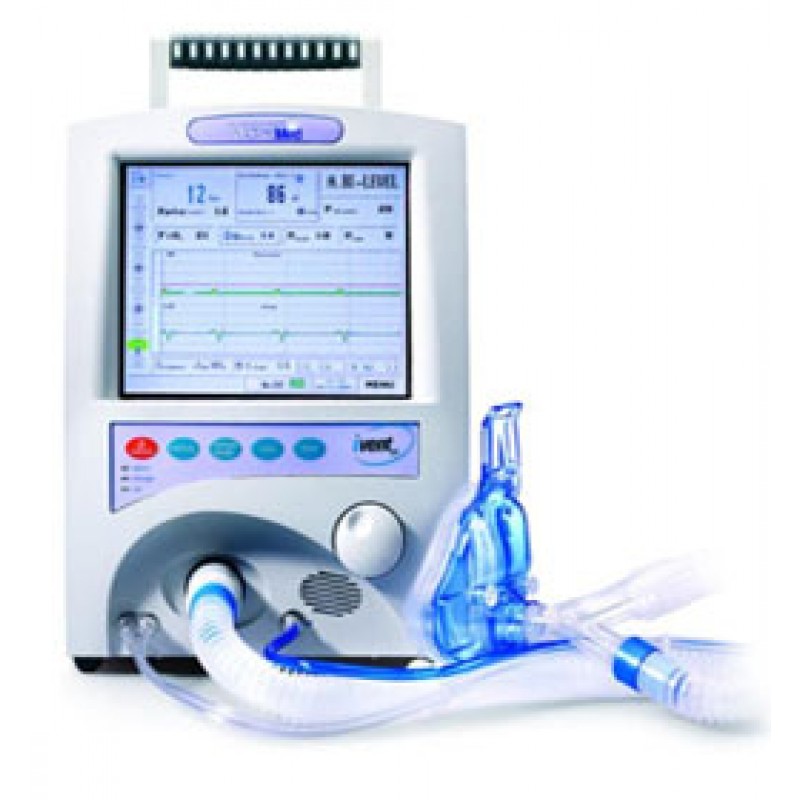

PC based light-weight design that efficient addresses critical care, ER, sub acute, transport, and homecare needs. offers standard ventilatory modes as well as non-invasive bi-bevel, Self-contained turbine eliminates the needs for compressor. Extensive graphics, internal battery,O2 analyzer include, Pediatric and adult application.
The services offered by Biotronix are :
Features :
- Closed Loop Flow & Pressure Controller
- Ventilation Modes:
- Assist Control (A/C): . Volume Controlled . Pressure Controlled
- Synchronized Intermittent Mandatory Ventilation (SIMV): Volume Controlled . Pressure Controlled.
- Continuous Positive Airway Pressure (CPAP)
- Pressure Support Ventilation (PSV)
Special Features :
- Adaptive Bi-Level (NIV)
- Adaptive FlowT Adjustable Rise Time
- Adaptive TimeT Easy ExhaleT
- Preset Parameters by Patient Weight Sigh Breath
- Apnea Backup Ventilation 100% O2 Suction
Ventilation Performance and Controlled Parameters :
- Respiratory Rate : 1 to 80 BPM
- Tidal Volume : 50 to 2,000 ml
- Inspiratory Pressure Limit : 5 to 80 cm H2O
- Inspiratory Time Adaptive TimeT: , or 0.2 to 3 seconds
- Peak Flow Adaptive FlowT : or 1 to 120L/min Spontaneous up to 180 L/min
- Oxygen Mix (FIO2) : 21% to 100%
- PEEP : 0 to 40 cm H2O
- Trigger Sensitivity : 1 to 20 L/min Flow Sensitivity + off -0.5 to -20 cm H2O Pressure Sensitivity + off
- PSV : 0 to 60 cm H2O
- Positive Pressure Relief Valve : 80 cm H2O
- Synchronized Nebulizer : 10-240 Minutes
Monitoring and Displayed Parameters :
- Airway Pressure (analog bar graph & numerical)
- Total Breath Rate
- I:E Ratio
- Exhaled Tidal Volume
- Exhaled Minute Volume
- Peak Flow
- Inspiratory Time
- Electrical Power Source (external / internal)
- Battery Level
- Pressure, Flow and Volume Waveforms Software Package:
- Real Time Pressure and Flow Waveforms
- Waveform History Browse
- Trending of Monitored Data (72 Hours)
- Respiratory Mechanics (C, R, MAP, RR/Vt)
- Pressure, Flow and Volume Loops
- Lung Mechanics (C, R, MAP, RR/Vt)
