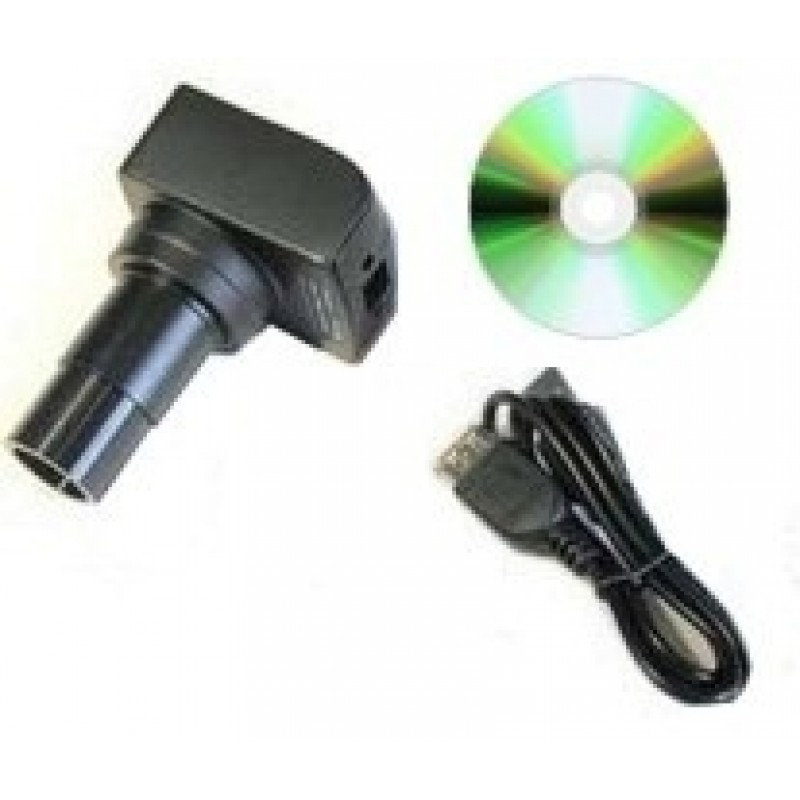

Image Analysis Software

Product Details :

MICROSTRUCTURE CHARATERIZER Software (METALLURGICAL SOFTWARE)

1) ASTM Grain size calculation as per E-112

2) Grain Size variation trend chart: An advanced tool.

3) Grain size estimation – comparison with standard graticules – fast, time saving approach for routine analysis.

4) Volume Fraction Measurement as per ASTM E-562:89

5) Multiphase area function

6) Nodularity Measure for Cast Irons calculated as per JIS 5502

7) Inclusion content rating in steels as per Indian Standards – Using a button press comparison method.

8) Inclusion rating in Steels as per ASTM E-45, IS, JIS & DIN

9) Linear Measurements / Angular Measurements :

10)Plating Thickness

11)Plating layer on PCB

12)Nitrided layer thickness

13)Case hardened depth.

14)Individual nodule diameter

15)Perarlite interlamellae spacing

16)Carburisation and Decarburisation depth

17) Powder Particle Size Distribution

18) Hardness Indentation Measurement.

19) Bearing Material Analysis as per SEP 1520

20) % Retained Austanite with phase distribution from the edges

21) Cast Iron flakes sizes and distribution

22) Interactive Fr-C diagram

23) Micro Hardness Profile with ECD identification.
