Weld Analysis

Product Details :

Model: DeXel-Weld

• Dedicated Analyzer for weld penetration depth, bead width, leg length, HAZ and other weld parameters’ analysis
• Flexible tolerance limit facility with GO/No GO indications for observed readings


Quick Overview :

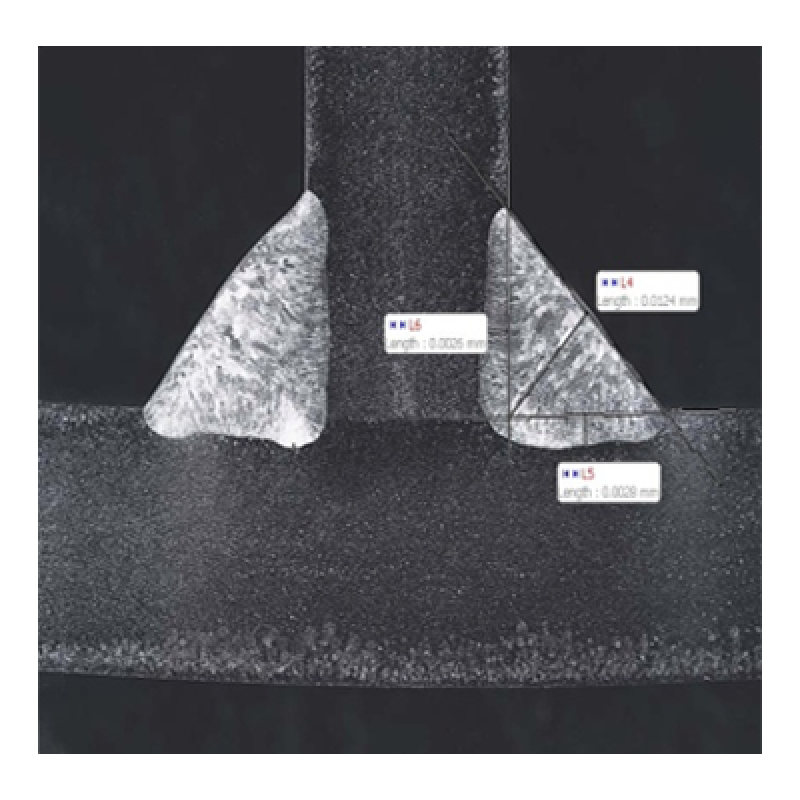

• Leg length, throat, penetration, root penetration, metal thickness, gap etc
• Area and depth of Heat Affected Zone (HAZ)
• Maximum Lack of fusion penetration depth
• Joining Angle measurement
• Color coding for independent measurements
• Option for tagging the readings on image
• Flexible tolerance limit facility with GO/No GO indications for observed readings
