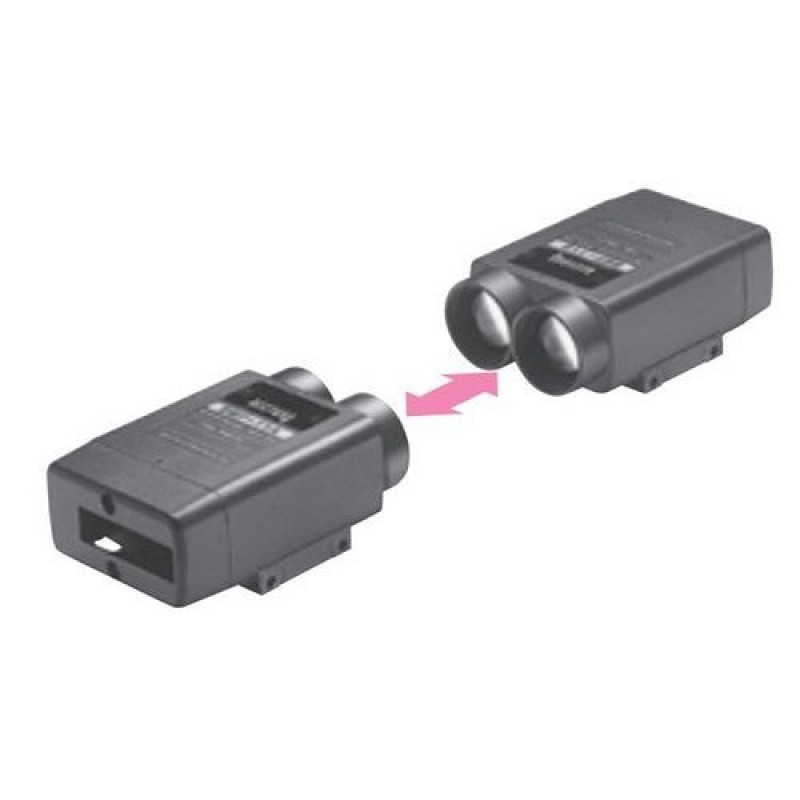

Long Distance Serial Optical Data Transmission Device

Product Details :

Transmission delay	500nsec
Transmission distance	0-70 m
Directional angle	50 m Or Less
Transmission system	Full-duplex two-way transmission device
Modulating system	FSK modulation
Modulating frequency	35 MHz
Transmission speed	0 to 500kbps
Connecting type	Multi-drop system
Communicating speed	250 kbps
Transmission distanc	100 m
Power source	24 V DC
Weight	500 GM

Other Details:
BWF-1S
High performance in compact and light weight of handy size, 44 x 84 x 130.3mm! Long distance, 100m and 200m! 400m type is also available in the same size!
·         Actual transmission distance is 2 times or more than rated value and data transmission with high reliability is realized.
·         Many kinds of interface are lined up, RS-232C, RS-422, currentloop and RS-422/RS-485 multi-drop, etc.
·         Level lowering warning output are provided due to prevent some troubles such as dislocation of optical axis or dirty lens surface.
·         It can be easy to check optical axis adjustment with optical checker or checking terminal.
·         This device provides the function of opti cal repeater and makes a wireless communication between master and slave or masters under SafetyBUS p.
·         Easy wiring and low cost .
