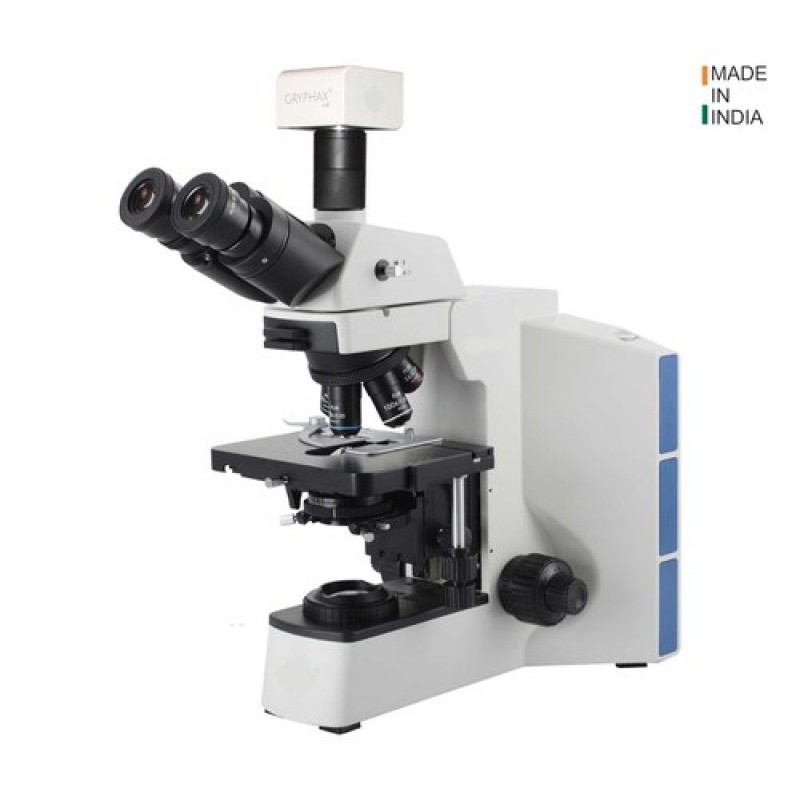

Advanced Research Biological Microscope

Product Details :

Technical specification: series is designed keeping user comfort in mind. Conveniently placed controls for fast and efficient observations. With multi layer coating on our Apochromatic objectives, reduce chromatic aberration to low levels, resulting bright and high contrast images even for low light applications like Fluorescence dark field etc.

Body: Rugged, rigid, single die cast, ergonomic design(3D), touch point treated, acid resistant texture painted, intensity controller by digital set & reset, auto photo preset switch, LED display of intensity & on/off switch, image capture button, rubber feet, slot for Ana/Pol, inbuilt 3 transmitted filters LBD/ND6/ND25, (provision to replace halogen with LED) suitable for various microscopy applications.

.Optical System: Infinite corrected optical system, colour corrected, system anti-fungal, anti-mould, anti-bacterial coated (multi-layered hard coated), colour coded objectives, fly eye lens, vacuum coated prism parfocal (45mm), parcentered. maximum S/N ratio and best optical performance from UV to near Infrared.

Koehlers Illumination: Kohler Eco illumination halogen 12V-100W (life 2000 hrs.) (optionally available with reflector) prefocused, Pre-centered, aspheric collector, microprism filter for uniform illumination in entire FOV, precentered, intensity adjustable with heat absorbant filter, having 4500K colour temprature

Viewing Head: Trinocular inclined at 30 degree, sidentopf head, constant focus mechanism, rotatable through 360 degree, IPD-from 50-76, splitting ratio 100:0, 20:80, uniform illumination to entire FOV, suitable for FOV upto 25mm (provision to attach photomicrography in future)

Nosepiece: Inward tilted, Precise septuple revolving on multiple ball bearing, click stop mechanism for smooth and accurate alignment, having ribbed grip for easy rotation slot for DIC

 Eyepiece: Paired, high eye-point WF 10X, FOV-25mm, multilayered coated, high quality, good contrast, abrresion free, aplantic, precentered, dioptre adjustment on both eyepiece (+-5mm)

 Mechanical Stage: Two way linear guide, rectangular right/left hand low drive control, 270 degree rotatable, hard coated, double slide holder, stage size 168×187mm, X-Y movement 55-80mm on wire, precision 0.1mm, by low position co-axial control, tension adjustable

Objectives: 4X, N.A. 0.13, W.D. 17.1mm, SAPO, infinite, unbreakable container for storage

10X, N.A. 0.3, W.D. 16mm, SAPO, infinite, unbreakable container for storage

20X, N.A. 0.5, W.D. 2.1mm, SAPO, infinite, unbreakable container for storage

40X, N.A. 0.75, W.D. 0.72mm, SAPO, infinite, spring loaded, unbreakable container for storage

100X, N.A. 1.3, W.D. 0.20mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage

Focusing: Low position coarse & fine Co-axial, built-in tension control, upper limit stopper, coarse adjustable distance 25mm, high sensitivity focus Drive with 0.10 mm per revolution, fine adjustment 1.0um/Div, 3step tension, (coarse & fine graduated) height adjustable

Condenser: Abbe condenser N.A. 0.9/1.25 swing out, for 2x-100x magnification, for bright field, separate movement from focussing (rack & pinion), with iris diaphragm, with centre adjustable, filter holder for 2 filters & 32mm under condenser, upgradable to phase contrast, polarizing, and dark field microscopy application etc.

Power Supply: SMPS based, wide voltage range, 90V-240V, 50/60Hz

Standard Accessories: Cleaning cloth

Vinyl cover

Immersion oil (10ml)

Allen keys

Fuses - 2 nos

Instruction manual

Warranty card

Blue Filter/White balancing filter (frosted & Plain), Conversion filter

Power Cord (country Specific)

Neutral Density Filter

Calibration Certificate

Additional Information:

• Delivery Time: 5-6 days
