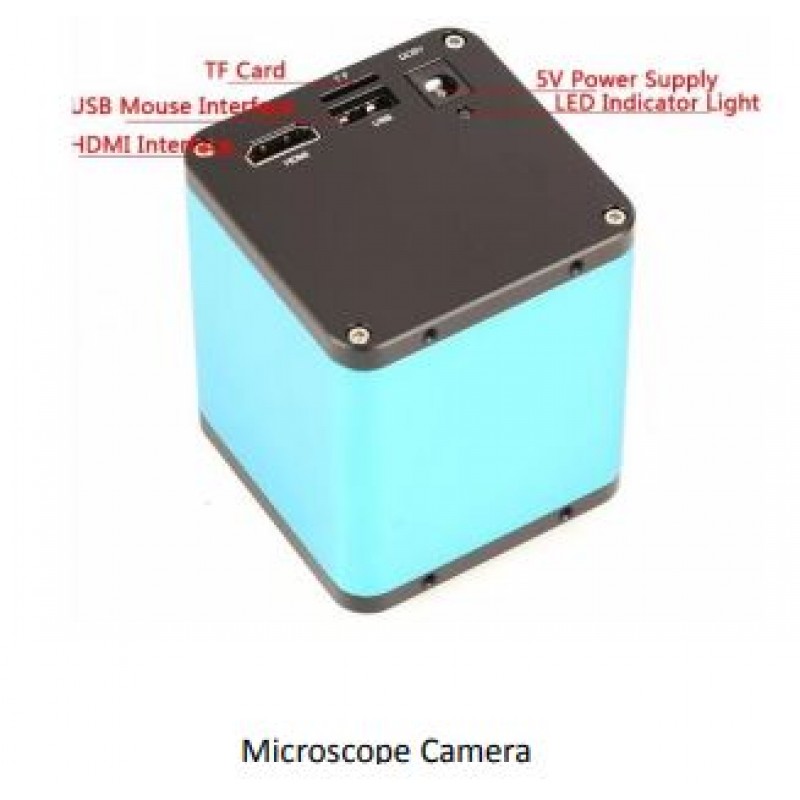

Autofocus HDMI TF Video Auto Focus Industry Microscope
Product Details :
- 1080P FULL HD 60FPS high speed camera
- UI design menu, easy to control by mouse
- Autofocus, when observation Objects of different heights (MAX 10CM), you do not need adjust the lens's working distance
- When you adjust the lens's Magnification, you do not need adjust the lens's Working distance
- When you adjust the lens's Working distance (MAX 10CM), you do not need adjust the lens's Magnification, The camera can Autofocus
Specification:
- Sensor: SON'Y IMX290
- Image Sensor : Colour CMOS
- Pixel size : 1/2.8〞
- Menu : Fully digital UI design
- Method of Operation : Mouse
- Lens interface : C/CS-type
- Power DC : DC5V
- Output method : HDMI
- White Balance : Auto / Manual / One-push control
- Exposure : Auto / Manual
- Display Frame rate : 1080P@60fps
- Scanning method : Line by line scanning
- Shutter Speed : 1/50s(1/60s)~1/10000s
- Operating Temperature : 0℃~50℃
- Magnification / Zoom : Support
- Saving function : Support TF card

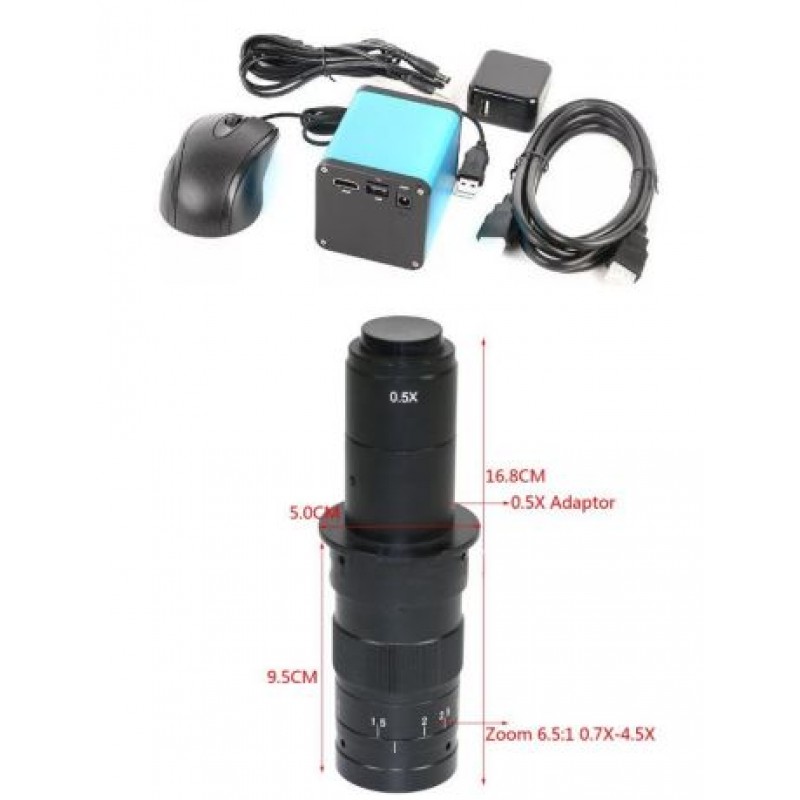

C-MOUNT Lens:
- Working distance: 95mm
- Zoom c-mount Lens
- 0.5X C-mount adapter
- Zoom ratios: 6.5:1
- Objective Magnification Power by 0.7 - 4.5X (about 10 - 180X on the
- display)
- Size: 180mm(L) * 50mm(DIA)

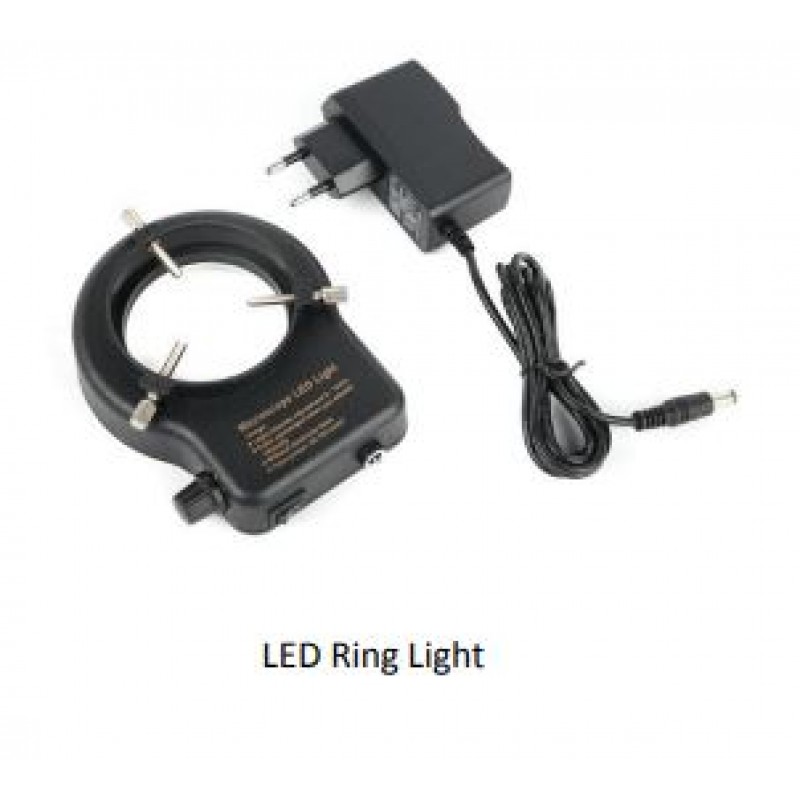

- 144 bright white LED bulbs
- 100,000 hours of life
- Intense and focused shadow-free illumination
- The brightness of 0-100%Adjustable,high brightness
- Variable intensity control
- Power input: 100-240V, 50-60HZ
- Suit for the dia of the lens: 30mm-63mm
