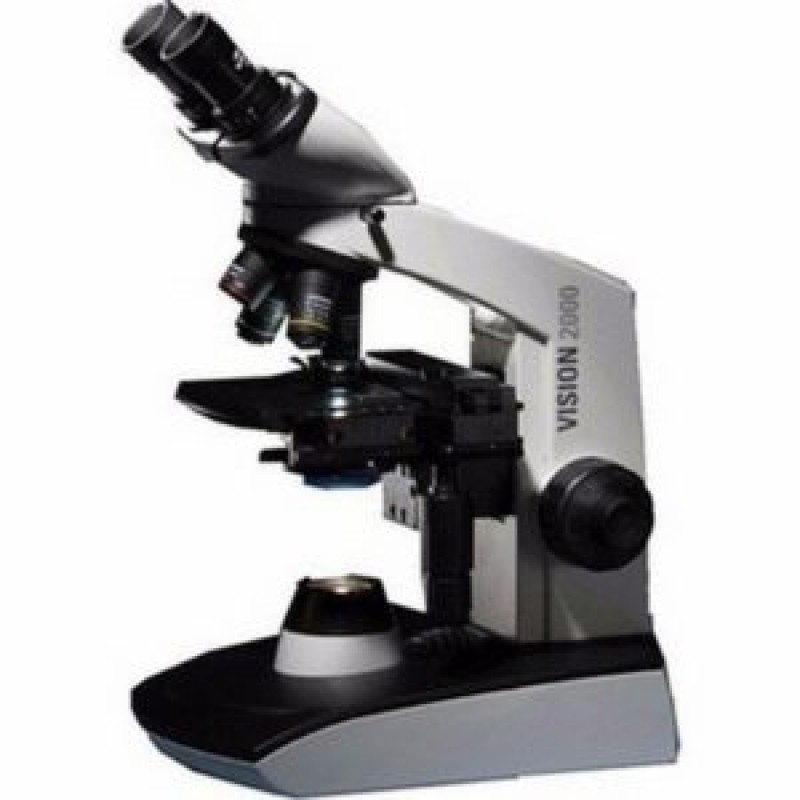

BINOCULAR MICROSCOPE MODEL VISION 2000 LED
Product Details:
With top of the line features of a Laboratory Microscope.
SPECIAL FEATURE: TURRET MOUNT is integrated part of die cast Body Arm.
High Grade Achromatic Objectives & WF Eyepiece Par-centered & Parfocal on CNC Machines.
Top cover on base of Poly-carbonate for comfortable hand rest, protects bulb heat. Detachable Power Cord.
All moving parts on Ball Bearing Guides to give highly sensitive & smooth working
TECHNICAL SPECIFICATIONS
- LABOMED BINOCULAR MICROSCOPE MODEL VISION 2000 LED
- Stand: Sturdy & Robert stand with anti rust materials. Extended base with hand rests for enhanced and comfort
- Viewing Bodies: Binocular tube 45° inclined, 360° rotatable, Interpipullary distance adjustable 54-74mm. Vacuum coated Prism for better transmission and anti fungus character.
- Eyepieces: Wide Field focusable paired eyepiece WF10x/18mm, with foldable eye guard, lockable, anti-fungus coating
- Nosepiece: Quadruple nosepiece (Ball bearing type) with rubber grip. PAR-CENTERED & PARFOCAL on CNC Machines.
- Objectives: LP series DIN Semi-Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x Oil (spring loaded) anti-fungus coating.
- Mechanical Stage: Mechanical stage 135x125mm with Co-axial drive, highly smooth on ball slides, stainless steel holder for slide movement X-Y = 75mm x 50mm
- Condenser: Sub-stage abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guide.
- Focusing: Co-axial coarse and fine focusing on ball drive system for smooth movement with adjustable Tension Control knob.
- Illumination: LED illumination with variable illumination control & Rechargeable Lithium Ion Battery Provide long Hours of Battery Backup incase of electricity failure.
- Electrical: Input 200v-240v AC - with removable imported cord.
- PACKED in styrofoam box, with operation manual, dust cover, cleaning cloth, power cord.
