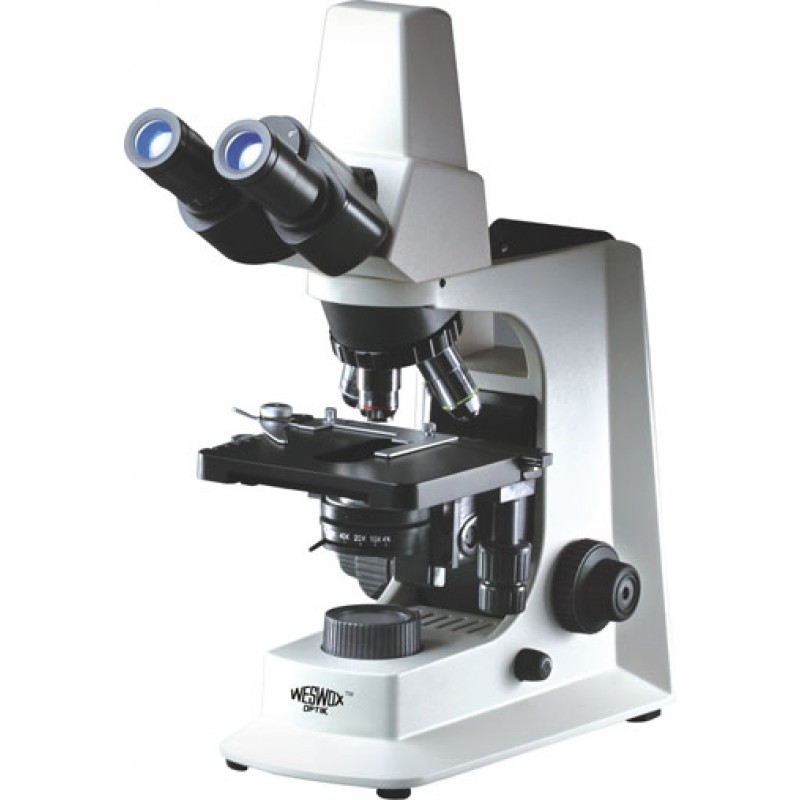

Digital Biological Microscope
An ideal, fully compatible superb model for simple digital documentation purposes.
In conjunction with its excellent cost-performance ratio, the WESWOX BXL-DG uses a 3 megapixel camera which is excellent for standard bright field applications.
Incorporates standard eyepiece adapter for optical coupling, and data transfer and power requirements are dealt with by a single high-speed USB 2.0 cable. This ensures that both hardware and software integration into any system is easy.
Built-in 2mp Camera for standard bright field applications.
Single mold study stand eith extended Base for better stability.
Specifications:
Warranty Information 2 Years parts.
1 year Electronics
| Stand | Single mold sturdy stand with anti rust materials. Extended base for better stability. | ||
| Observation Head | Siedentopf BINOCULAR observation head inclined at 30º rotatable at 360º. Interpupillary distance adjustable between 55-75mm. Diopter adjustment ring on ocular provides correction for eye acuity | ||
| Eyepiece | Wide Field Eyepiece 10x (PAIRED) FOV 20mm. | ||
| Nosepiece | Reverse angle quadruple nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece. | ||
| Objectives | E-Plan Achromatic 4X E-Plan Achromatic 10X E-Plan Achromatic 40X(SL) E-Plan Achromatic 100X Oil(SL). | ||
| Stage | Size 125x135mm, supported on ball bearing guideways and having low positioned co-axial controls for stage movement | ||
| Focusing | Co-axial focusing control with ball bearing guideways & large knobs, pre focusing lever & tension adjustment ring. The slow motion has 1DIV=0.002mm. | ||
| Condenser | Sub stage abbe condenser NA 1. 25 having a spherical lens, adjustable iris diaphragm and swing out filter holder. Flip type front lens condenser. | ||
| Illumination | Incorporates 6V/20W halogen lamp with adjustable iris diaphragm. Power supply input from 90-240V ac with switch mode power supply. Hinged door for easy replacement of halogen bulb. | ||
| Packaging contents | Blue & Grey filters STYRO FOAM Molded pack |
| CAMERA | Built-in head digital board camera with sensor of 3 Mega pixel, Size ½ inch (Microns MT9 TOO1), Resolution : 2048x1536. White balance: Automatic & Color filter: RGB 24 bit. |
Digital Microscopes BXL-DG
