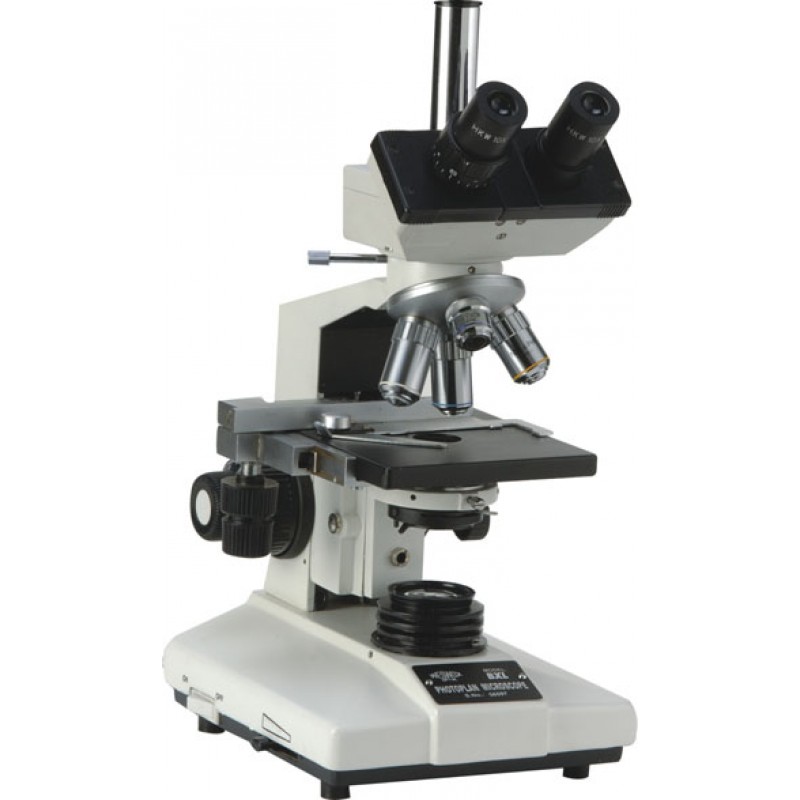

Research MIcroscope
Incorporates all the features of an international microscopes for professionals.
Ideally recommended for routine as well as research work.
Binocular fitted with large size prisms for superbclarity & contrast.
KEOWA optics with high eye point offers maximum resolution and high colour fidelity.Lead free optics and pains make BXL a truly ecofriendlysolution.
Large knobs provide a soft and sophisticated touch to mkicroscope.
Specifications:
Warranty Information 2 Years parts.
3 years KEOWA optics.
1 year Electronics
Stand | Rigid & Heavy single mold aluminum die-cast stand | ||
Observation Head | TRINOCULAR head inclined at 45o and rotatable in 360o lockable at any angle. Both eyepiece tubes focusable to match objectives tube length. Interpupillary distance adjustments provided. | ||
Eyepiece | Lockable, anti-fungal KEOWA Extra Wide Field HKW 10x/FOV 18mm (PAIRED) A.R. coated eyepiece with high eyepoint and foldable eyeguards. H6x (PAIRED) eyepiece extra | ||
Nosepiece | Quadruple/Quintuple ball bearing nosepiece with POSITIVE click stop & rubber grip | ||
Objectives | KEOWA DIN size anti-fungal RMS Semi Plan Achromatic objectives 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65(SL) and 100x/NA 1.25(SL) Oil imm. | ||
Stage | Double Plated Rectangular stage( Ball Bearing Type) of size 120x140mm having low positioned co-axial controls. Both X & Y axis having graduated scale & verniers reading to 0.1mm. | ||
Focusing | Co-axial fine & coarse focusing control with ball bearing guideways based on four stage gear reduction system, free from any back lash & large knobs provide a soft & sophisticated touch to the microscope. | ||
Condenser | Focusable Abbe two lens type condenser NA 1.25 fitted with iris diaphragm and swing out filter holder with blue filter moving up and down through rack and pinion mechanism | ||
Illumination | Built-in Base illumination with 6V-20W halogen lamp & intensity controlled power supply. | ||
Packaging contents | Packed in shockproof Styrofoam molded box or in a plywood cabinet having provision for placing eyepieces, objectives Nylon Dust cover Detachable power cord and 3 pin-plug |
Accessories (optional) | Dark field and phase contrast kits High resolution digital camera eyepiece DG-C140i. CALIPER WIZ SOFTWARE | ||
Tension Control Ring | Enable you to adjust tension on coarse focusing knobs |
