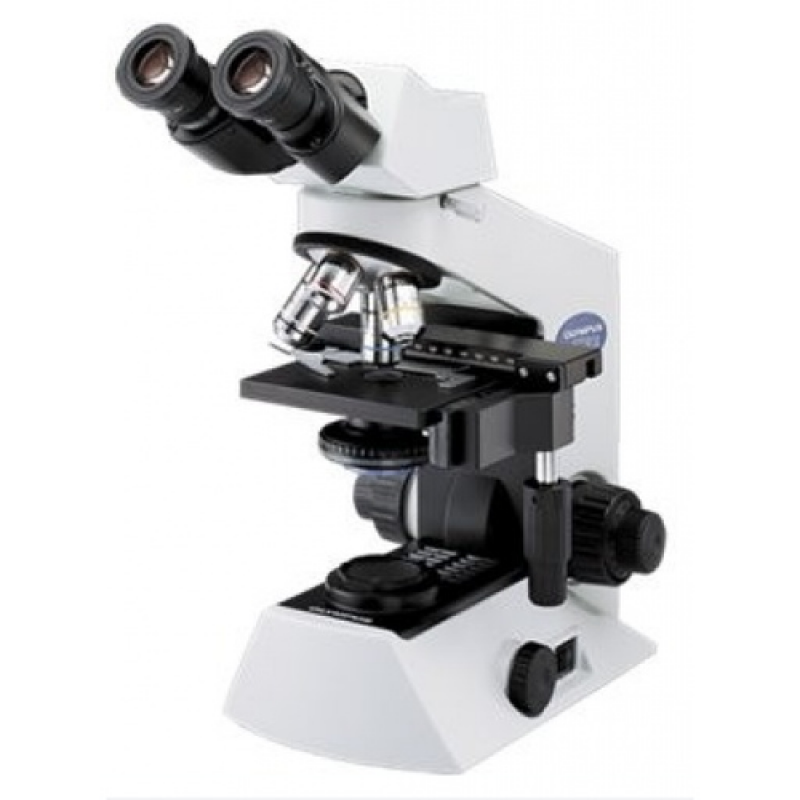

Binocular Microscope CH20i LED

Binocular Microscope CH20i LED

Product Details:

Minimum Order Quantity1 Piece
BrandMagnus
Weight (Kilogram)7 Kg
Nose PieceQuadruple
Voltage100-240 V
Eyepiece10X WF
Mechanical Stage Size (mm)120 x 132mm
Current0.42/0.25 A
CondenserAbbe type with aperture iris diaphragm NA 1.25
Optical SystemUIS 2 (Universal Infinity System) optical system
Observation Tube30 degree inclined binocular tube
Distance Adjustment Range53-75 mm
Frequency50/60 Hz
Lamp6V 20W halogen lamp ( x2)


Specifications :

  • Ergonomic & compact design for user convenience. UIS2 Plan infinity optics providing image flatness
  • Siedentop observation head for individual choice of adjustment. Anti fungus treatment for component durability. High eyepoint design eyepiece (F.N.20)
  • High performance aspheric lenses in the abbe condenser & light relay system for bright & uniform illumination
  • SMPS circuit for constant voltage output. Rackless stage for durability and ease of use
  • Mechanical stage focus-lock prevents mishaps. Component security – Student proof
  • Step up to Higher Performance with the Olympus UIS2 Infinity Optics. The CX21i sets new standards for educational and laboratory applications


Additional Information :

  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A
  • Delivery Time: 1-2 week
