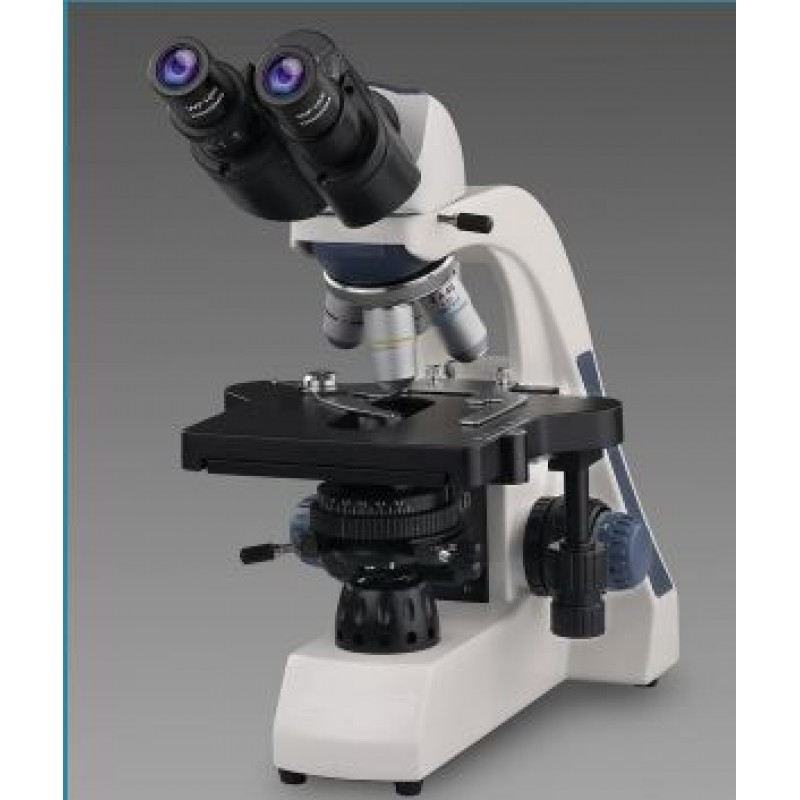

Binocular Observation Head

Product Details :

JBI-SMRT-01

• Siedentopf Observation head inclined at 30° rotatable at 360°.
• Diopter adjustment ring on ocular tube. (±5).
• Inter-pupillary distance from 55mm to 75mm.
• Eyepiece (Anti fungus coated)
• Wide Field 10X (paired) F.O.V 18mm.
• Objectives (Anti fungus coated)
• S-Plan Achromatic 4X
• S-Plan Achromatic 10X
• S-Plan Achromatic 40X(S.L.)
• S-Plan Achromatic 100X Oil(S.L.)
• Mechanical Body
• Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
• The slow motion has 1Div=0.002mm.
• Quadruple nosepiece revolves on ball bearing.
• Double plate mechanical stage size 140mmX155mm having low positioned co-axial controls on ball bearing
• Cross movement 55mm X 75mm.
• Sub Stage Condenser
• Abbe condenser N.A.1.25 swing out filter holder, iris diaphragm.
• Illumination System
• Built-in-base illumination system with 3W LED bulb and adjustable brightness.
