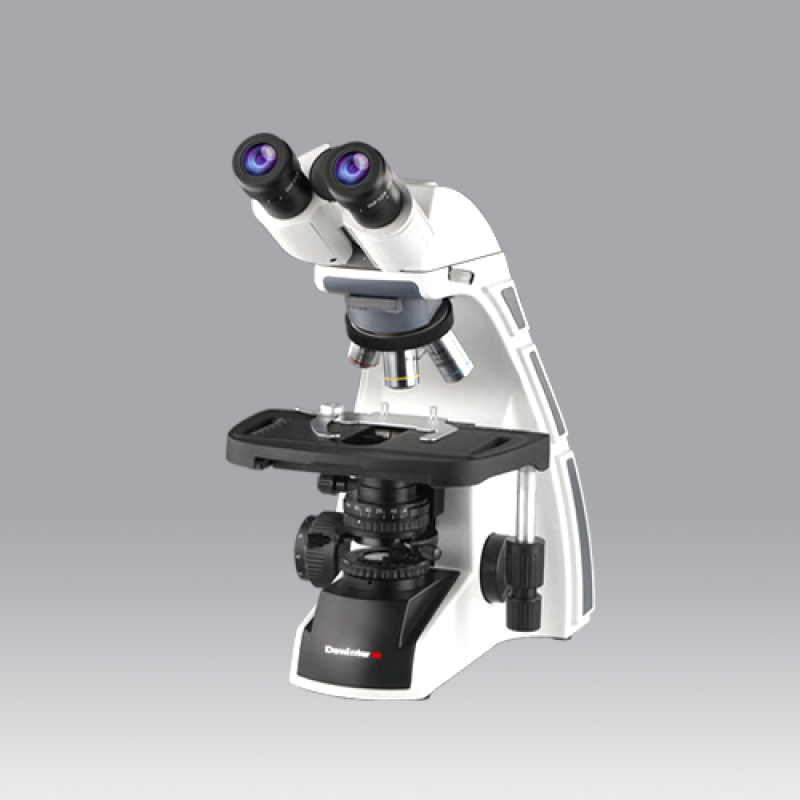

Biological Binocular Microscope Model: Select
Product Details :
Brand | Dewinter |
Usage/Application | Research |
Model Name/Number | Select |
Eyepiece | 10X (paired) F.O.V 20mm |
Mechanical Stage Size | 140mm X 132mm |
Cross Movement | 78mm X 54mm |
Inter Pupillary Distance | 48mm to 75mm |
Coarse Stroke | 37.7mm/rotation |
Binocular Observation Head
- Siedentopf Observation head inclined at 30° rotatable at 360°.
- Diopter adjustment ring on ocular tube. (±5).
- Inter-pupillary distance from 48mm to 75mm.
Eyepiece (Anti fungus coated)
- Wide Field 10X (paired) F.O.V 20mm.
Objectives (Anti fungus coated)
- S-Plan Achromatic 4X
- S-Plan Achromatic 10X
- S-Plan Achromatic 40X(S.L.)
- S-Plan Achromatic 100X Oil(S.L.)
Mechanical Body
- Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
- The slow motion has 1Div=0.002mm.
- Quadruple nosepiece revolves on ball bearing.
- Double plate mechanical stage size 140mm X 132mm having low positioned co-axial controls. Coarse stroke 37.7mm/rotation, fine division 0.002mm
- Cross movement 78mm X 54mm.
Sub Stage Condenser
- Abbe condenser N.A.1.25 swing out filter holder, iris diaphragm.
Illumination System
- Built-in-base illumination system with 3W LED bulb and adjustable brightness.
Standard Accessories
- Operating manual, dust cover, guarantee card and Styrofoam molded pack.
