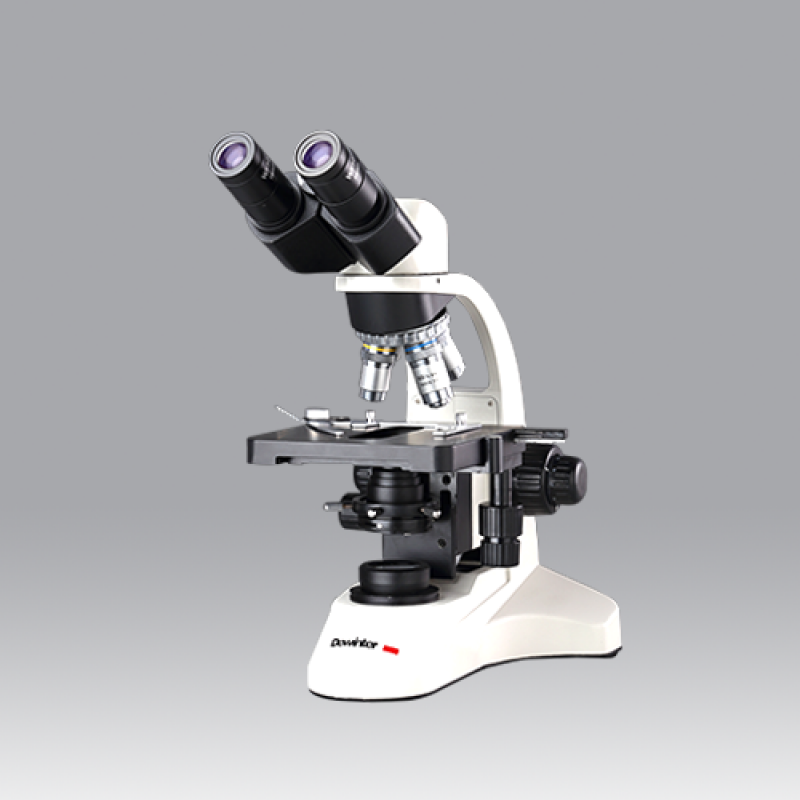

Biological Binocular Microscope Model: Smart
Product Details :
Light Source | Electric |
Brand | Dewinter |
Eyepiece | 10X (paired) F.O.V 18mm |
I Deal In | New Only |
Cross Movement | 55mm X 75mm |
Inter Pupillary Distance | 55mm to 75mm |
Binocular Observation Head
- Siedentopf Observation head inclined at 30° rotatable at 360°.
- Diopter adjustment ring on ocular tube. (±5).
- Inter-pupillary distance from 55mm to 75mm.
Eyepiece (Anti fungus coated)
- Wide Field 10X (paired) F.O.V 18mm.
Objectives (Anti fungus coated)
- S-Plan Achromatic 4X
- S-Plan Achromatic 10X
- S-Plan Achromatic 40X(S.L.)
- S-Plan Achromatic 100X Oil(S.L.)
Mechanical Body
- Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
- The slow motion has 1Div=0.002mm.
- Quadruple nosepiece revolves on ball bearing.
- Double plate mechanical stage size 140mmX155mm having low positioned co-axial controls on ball bearing
- Cross movement 55mm X 75mm.
Sub Stage Condenser
- Abbe condenser N.A.1.25 swing out filter holder, iris diaphragm.
Illumination System
- Built-in-base illumination system with 3W LED bulb and adjustable brightness.
Standard Accessories
- Operating manual, dust cover, guarantee card and Styrofoam molded pack.
Biological Binocular Microscope Model: Smart
- Views: 114
- Vendor: Dewinter Optical Inc
- Vendor Type: Manufacturer, Supplier
- Product Code: JK00000001
- Availability: In Stock
- ₹0
