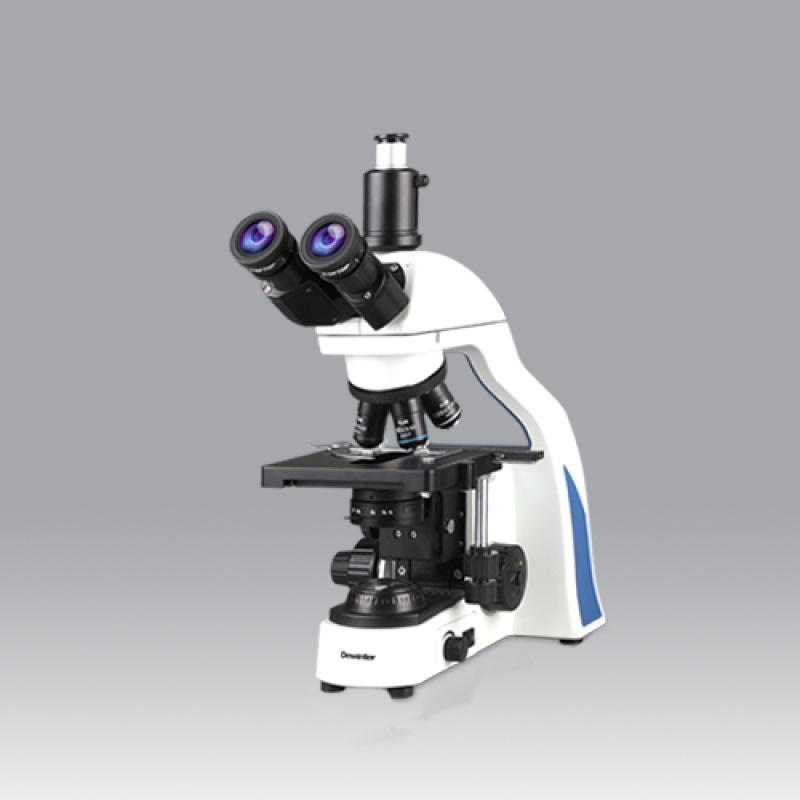

Biological Trinocular Microscope Model: Classic
Product Details :
Brand | Dewinter |
Usage/Application | Research |
Model Name/Number | Classic |
Eyepiece | 10X (paired) F.O.V. 22mm |
Stage Size | 150mm X 140mm |
Voltage | 220 V |
I Deal In | New Only |
Trinocular Observation Head
- Siedentopf Observation head inclined at 30° rotatable at 360°.
- Vertical focusable phototube for Digital Camera.
- Diopter adjustment ring on ocular tube (±5).
- Inter-pupillary distance from 48mm to 75mm.
Eyepiece (Anti fungus coated)
- Extra wide field 10X (paired) F.O.V. 22mm
Objectives (Anti fungus coated)
- IOS Plan Achromatic 4X
- IOS Plan Achromatic 10X
- IOS Plan Achromatic 20X(S.L.)
- IOS Plan Achromatic 40X Oil(S.L.)
- IOS Plan Achromatic 100X Oil(S.L.)
Mechanical Body
- Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
- Reverse angle quintuple nosepiece revolves on ball bearing. Slot for polarizer.
- Double plate mechanical stage size 150mm X 140mm having low positioned co-axial controls.
Sub Stage Condenser
• Abbe condenser N.A.1.25 swing out filter holder, iris diaphragm.
Illumination System
• Brightness control knob: Kohler illumination system with 3W LED.
Standard Accessories
- Dust cover, operating manual, guarantee card, blue filter and Styrofoam molded pack.
