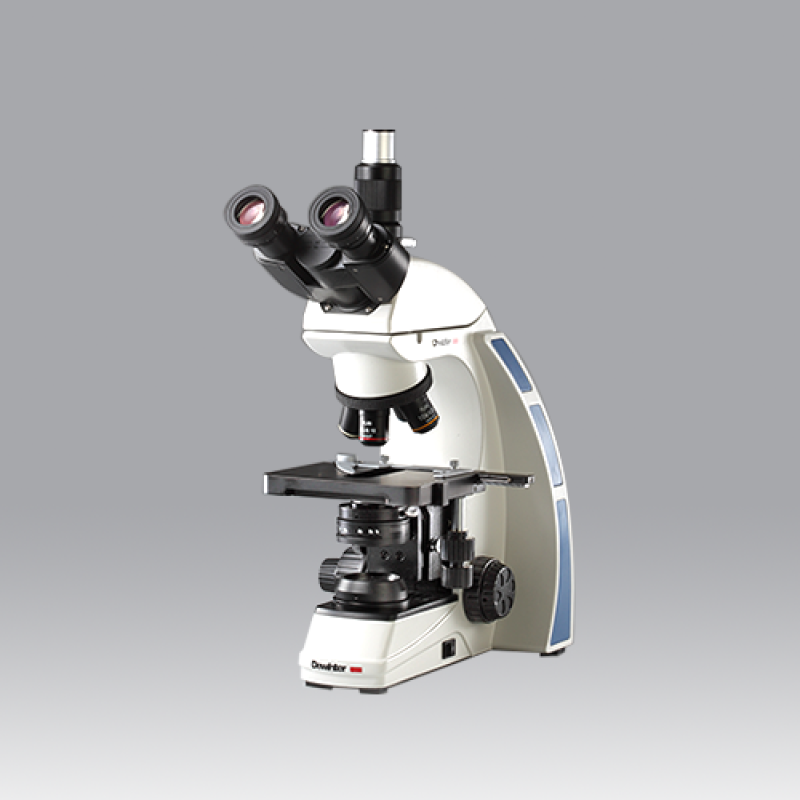

Biological Trinocular Microscope Model: Crown
Product Details :
Model Name/Number | Crown |
Usage/Application | Laboratory |
Brand | Dewinter |
Light Source | LED |
Color | Black |
Eyepiece | 10X (paired) F.O.V 22mm |
Mechanical Stage Size | 140mm X 132mm |
Trinocular Observation Head
- Siedentopf Observation head inclined at 30° rotatable at 360°.
- Vertical focusable phototube for Digital Camera.
- Diopter adjustment ring on ocular tube (±5).
- Inter-pupillary distance from 48mm to 75mm.
- Eyepiece (Anti fungus coated)Wide Field 10X (paired) F.O.V 22mm.
Objectives (Anti fungus coated)
- IOS Plan Achromatic 4X
- IOS Plan Achromatic 10X
- IOS Plan Achromatic 40X(S.L.)
- IOS Plan Achromatic 100X Oil(S.L.)
Mechanical Body
- Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
- Reverse angle quadruple nosepiece revolves on ball bearing.
- Double plate mechanical stage size 140mm X 132mm having low positioned co-axial controls On ball bearing guide ways.
Sub Stage Condenser
Abbe condenser N.A.1.25 swing out filter holder, iris diaphragm.
Illumination System
Illuminator systems with ultra high brightness 3W LED. Brightness control knob
Standard Accessories
Dust cover, operating manual, guarantee card, blue filter and Styrofoam molded pack.
